概要・特点

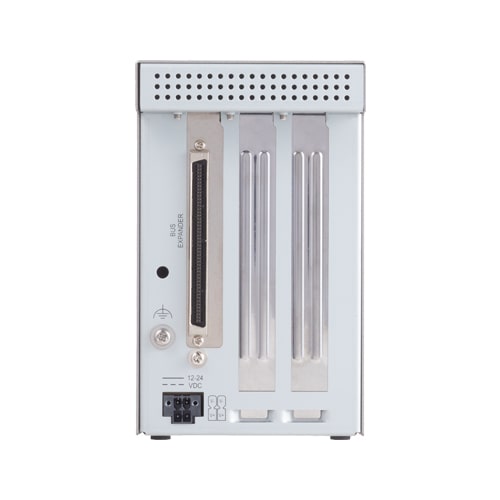

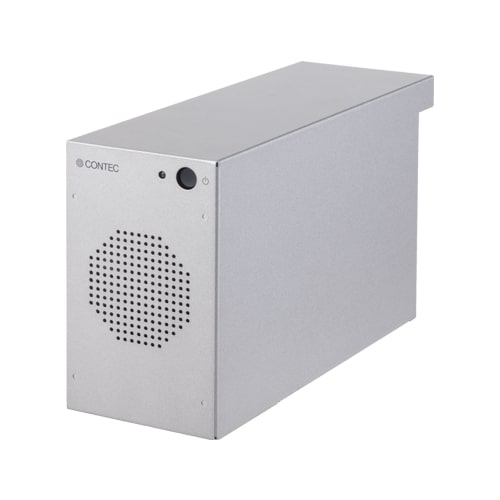

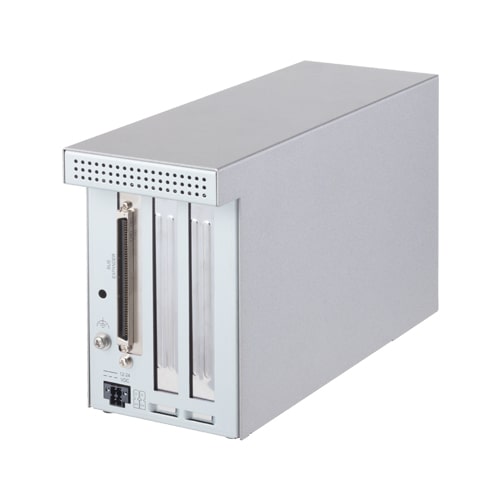

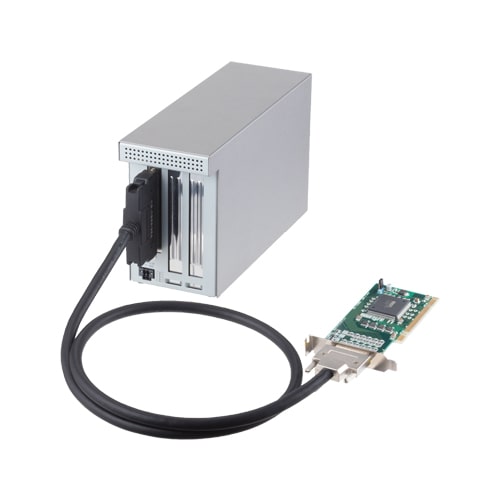

This product is an expansion chassis that adds a PCI bus expansion slot by connecting the PC main unit with an expansion adapter (sold separately).
-
PCI (5V/32bit 33MHz) bus slots can be added to a PC
- PCI bus (5V/32bit 33MHz) can be expanded. 2 slots can be added.
-
PCI bus boards can be connected
- ECH-PCI-BE3-H2B can connect two short size [176.5(L)×107(H)mm] PCI bus cards.
-
ON/OFF control of the chassis can be linked to a PC
- Can link the ON/OFF control of the expansion chassis to that of a PC.
-
Steel chassis with cooling fan
- Steel chassis with cooling fan suitable for use in fields.
-
Compact housing design enables space-saving system construction
-
A wide range of power supplies (10.8 to 31.2VDC) supported
- It supports a wide range power supply of 10.8 to 31.2VDC and can be used in various power supply environments. An optional AC adapter (PWA-160AWD2) is available.
