ECH-PCI-BE3-H4B Bus extension type PCI bus expansion chassis (short x 4)

• 概要・特点
• 机能・规格
• 订购信息・选件
• 技术支持・下载

概要・特点

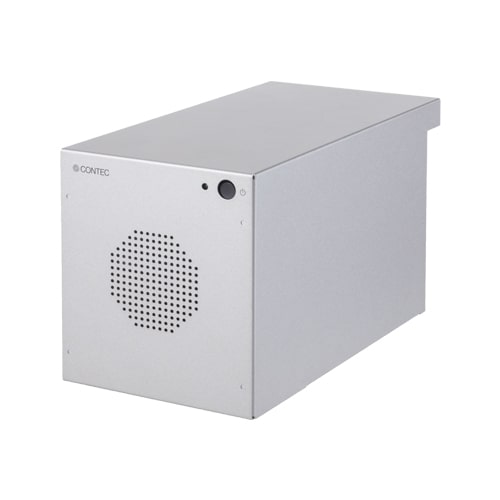

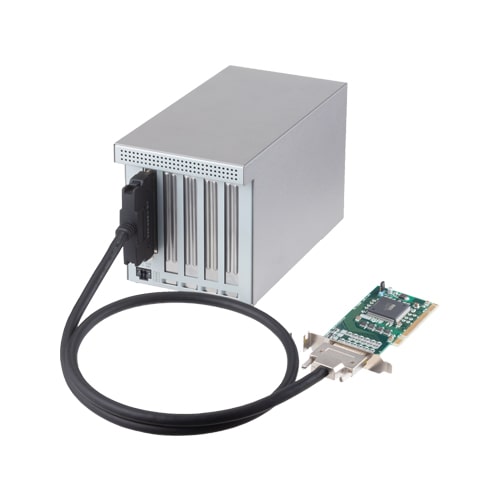

This product is an expansion chassis that adds a PCI bus expansion slot by connecting the PC main unit with an expansion adapter (sold separately).

• PCI (5V/32bit 33MHz) bus slots can be added to a PC

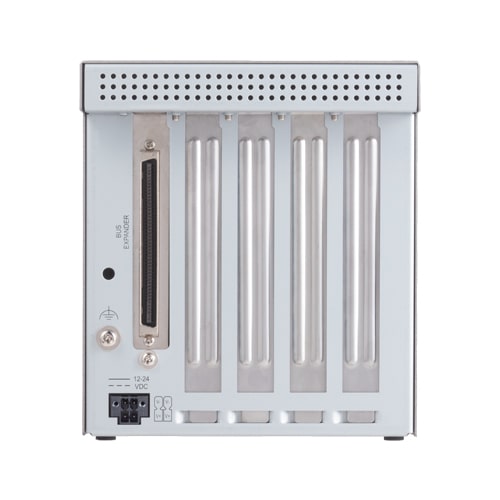

  • PCI bus (5V/32bit 33MHz) can be expanded. 4 slots can be added.
• PCI bus boards can be connected

  • ECH-PCI-BE3-H4B can connect four short size [176.5(L)×107(H)mm] PCI bus cards.
• ON/OFF control of the chassis can be linked to a PC

  • Can link the ON/OFF control of the expansion chassis to that of a PC.
• Steel chassis with cooling fan

  • Steel chassis with cooling fan suitable for use in fields.
• Compact housing design enables space-saving system construction

  • As the product supports a wide range of power supplies (10.8 to 31.2VDC), the chassis can be used in a variety of power environments.
• A wide range of power supplies (10.8 to 31.2VDC) supported

  • It supports a wide range power supply of 10.8 to 31.2VDC and can be used in various power supply environments. An optional AC adapter (PWA-160AWD2) is available.
