概要・特点

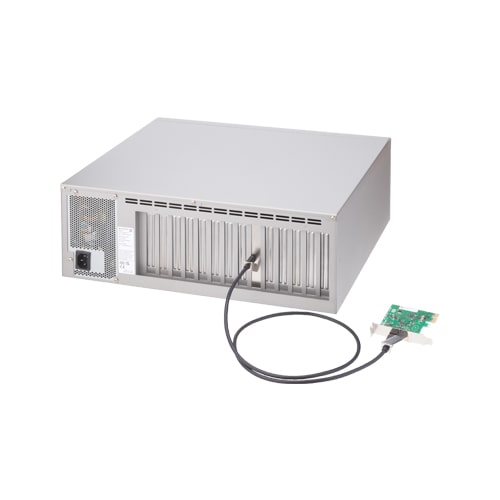

This product is an expansion chassis that adds PCI bus slots to a PC. Connecting an optional
expansion adaptor (EAD-DE-LPE) can add PCI bus slots onto the PC.
The installable card types are long-type [313.8 (L) x 107 (H) mm] PCI bus cards.
As your PC is turned ON or OFF, the expansion chassis can also be turned ON or OFF, accordingly.
-
PCI bus (5V/32bit 33MHz) slots can be added on PC
- PCI bus (5V/32bit 33MHz) can be added. Connect the computer and this expansion chassis using an expansion adapter (sold separately). ECH-PCI-DE2-F13A can be expanded to 13 slots.
-
PCI bus cards can be connected
-
Supported to connect long-type [313.8 (L) x 107 (H) mm] PCI bus cards.
ECH-PCI-DE2-F13A can connect 13 PCI bus cards.
-
Power-ON/OFF control of the expansion chassis can be linked to PC
- As a PC is turned ON or OFF, the expansion chassis can also be turned ON or OFF, accordingly.
-

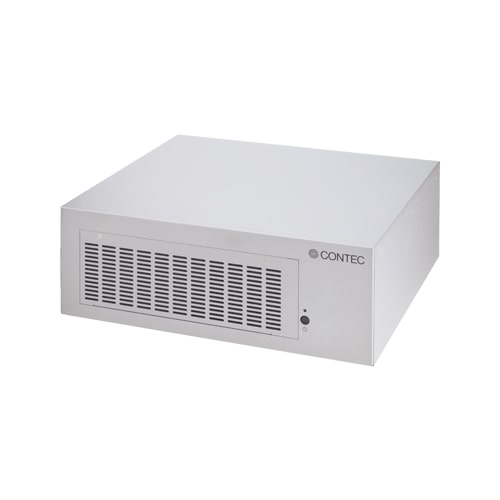

Steel chassis with cooling fan
- Steel chassis with cooling fan suitable for use in fields.
-

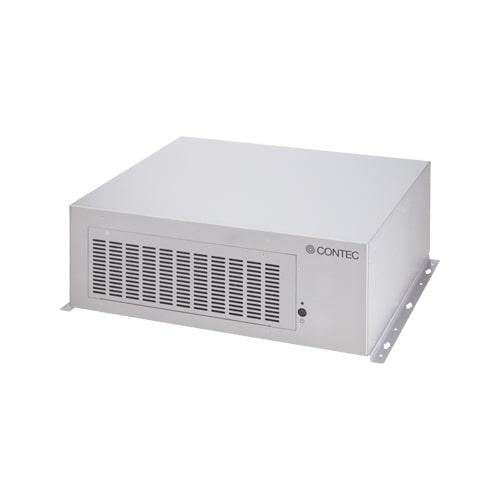

Wall-mountable
- Wall mounting is possible by attaching fixing brackets for expansion chassis (sold separately).
