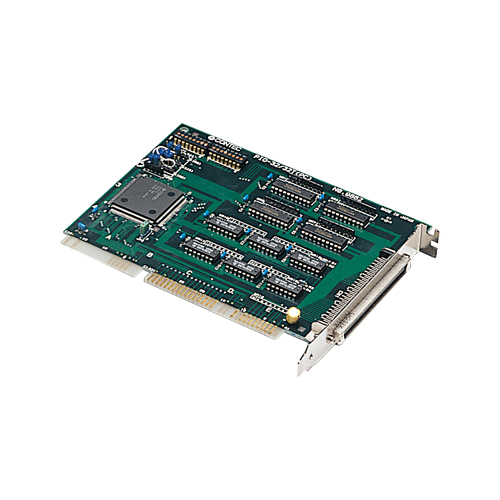

PIO-32/32T(PC) 数字量输入输出 ISA总线板卡 32点/32点 (非绝缘5VDC-TTL)

※即使在期间内，也会有不能接受修复．

A high-speed response is possible at TTL level input and output.
Four groups and the digital signal of 32 points can be inputted by making eight points into one group.
Four groups and the digital signal of 32 points can be outputted by making eight points into one group.
Four of 32 input signals can be used as an interruption input. Moreover, the edge of the input signal which generates interruption can also be chosen.
The option function other than a general-purpose input-and-output function is prepared.

机能・规格

输入点数	32-ch
输出点数	32-ch
双向输入输出点数	-
响应时间（输入）	200nsec (max.)
响应时间（输出）	200nsec (max.)
工作电压（输入）	5VDC-TTL
工作电压（输出）	5VDC-TTL
输入电路	Non-isolated TTL level input (Negative logic)
输出电路	Non-isolated TTL open-collector output (Negative logic)
内置外部电路用电源	-

支持的操作系统
