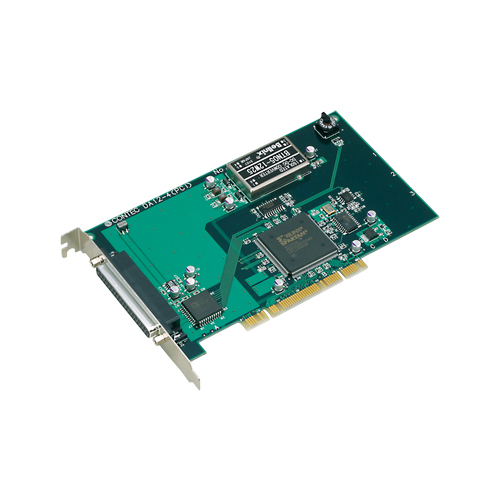

DA12-4(PCI) 模拟量输出 PCI 总线板卡 / 4ch(12bit 100ks/s)

标准保修3年
延长保修可能

Support for unipolar and bipolar output ranges
Two output modes selectable
Capable of updating the output voltage using a generating clock
Safety design to adjust output voltage to 0V when power supply is turned on
Optional units
Windows/Linux support device driver

*
有关延长保修的详细信息，请与我们联系。

支持的操作系统

订购信息・选件

产品模式与订货型号

型号	产品型号	适应规格
DA12-4(PCI)	模拟量输出 PCI 总线板卡 / 4ch(12bit 100ks/s)

可选件

设备驱动程序

項目	項目名
API-AIO(98/PC)	Windows version Analog I/O Driver
API-AIO(LNX)	Analog I/O Driver for Linux
API-AIO(WDM)	Windows version High-efficiency Analog I/O Driver
API-TIMER(W32)	Timer Driver
API-TIMER(WDM)	Windows Driver for Timer Driver
IO-LIB(LNX)	Linux General-purpose I/O Driver
IO-LIB(WDM)	Windows General-purpose I/O Driver

开发支持工具

項目	項目名
ACX-PAC(W32)	ActiveX components sets for measurement system development
ACX-PAC(W32) Express Edition	ActiveX Component for Measurement System
DAQ-LV-WIN	LabVIEW Data Acquisition Library
VI-DAQ	VI Library of data acquisition for LabVIEW

应用

項目	項目名
C-WaveformGenerator	Waveform Generator for Windows

电缆

項目	項目名
PCA37P	37pin D-type(M) to Open-Ended, Flat Cable
PCA37PS-P	A one end connector (Mold type) shield cable for 37 pin D-SUB connector
PCB37P	37pin D-type(M) at Each End, Flat Cable
PCB37PS-P	37pin D-type(M) at Each End, Shield Cable
PCC16PS-1.5	Single End Coaxial Cable for 16ch Input(1.5m)
PCC16PS-3	Single End Coaxial Cable for 16ch Input(3m)

终端

項目	項目名
DTP-3C	General Purpose Terminal
DTP-4C	Screw Terminal
EPD-37	Screw Terminal (M3.5 x 37)
EPD-37A	Screw Terminal (M3 x 37)

延长保修服务

項目	項目名
ESP-F6	Extended warranty service package (6 years service course) (Japan only)
