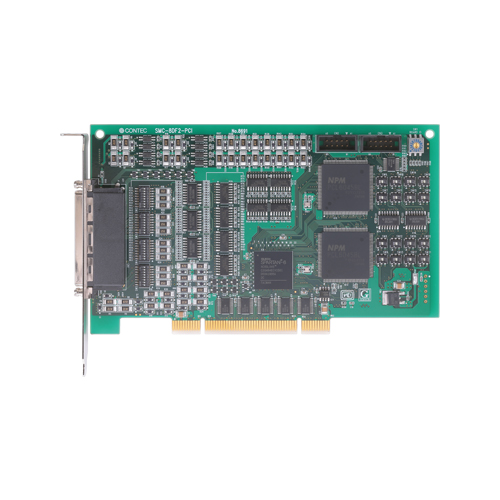

SMC-8DF2-PCI High-Speed Motion Control Board for PCI (8 axes)

  • RoHS Compliant
  • 标准保修3年
  • 延长保修可能
  • Capable of multi-axis independent control and pulse output up to 6.5Mpps
  • Capable of various control operations such as positioning,linear/circular interpolation, frame continuous operations,synchronization control, and so on
  • Provided with various output formats enabling connection to an encoder input circuit
  • Capable of storing positioning information up to 1024 frames for each axis and control without extra CPU load
  • Provided with various input formats enabling connection to pulse output format switching function
  • With the multi-boards and axis synchronization control function, capable of aligning the timing for operation start and end
  • *
    有关延长保修的详细信息,请与我们联系。

订购信息・选件

产品模式与订货型号

型号 产品型号/适应规格
SMC-8DF2-PCI High-Speed Motion Control Board for PCI (8 axes)

可选件

Cable

項目 項目名
PCB100PS Both sides with connector shield cable for 100 pin 0.8mm pitch connectors

Terminal

項目 項目名
EPD-100A Screw Terminal (M3 x 100)

Other Accessories

項目 項目名
CCB-SMC2 Conversion terminal for SMC series

Software Development Kit

項目 項目名
API-SMC(WDM) Motion Control Driver

Extended Warranty Service

項目 項目名
ESP-F6 Extended warranty service package (6 years service course)
