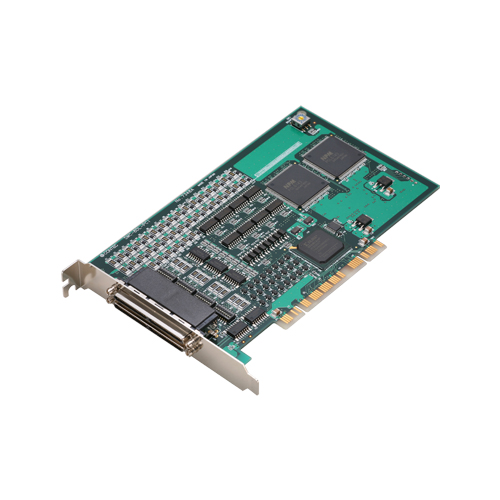

SMC-8DL-PCI High-speed line driver output 8 axis motion control board for PCI

标准保修3年
延长保修可能

Capable of multi-axis independent control and pulse output up to 9.8Mpps
Capable of controlling the jogging at fixed speed or by linear/S-curve acceleration and deceleration, positioning,and origin returning
Provided with various input/output formats enabling connection to an encoder input circuit as well as pulse output circuit
With the multi-axis synchronization control function,capable of aligning the timing for operation start and end
Capable of speed and position overriding

*
有关延长保修的详细信息，请与我们联系。

支持的操作系统

机能・规格

扩展模块

系列	-
总线规格	PCI
类型	Short Size
所用连接器	2x 0.8mm-pitch 100-pin (Female)

电机运动控制

通道数	8-ch
速度范围	0.3 ~ 9.8Mpps

计数器

通道数	8-ch
计数方式	28-bit Up/Down count
响应速度	5MHz [differential]; 3MHz [TTL]; 1MHz [open collector output]

支持的操作系统

支持的操作系统	Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux

Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux

*
各个软件能够支持的操作系统是不同的。关于各个软件所支持的操作系统以及发行版本的信息，请参阅该软件的Readme文件和在线帮助程序。
