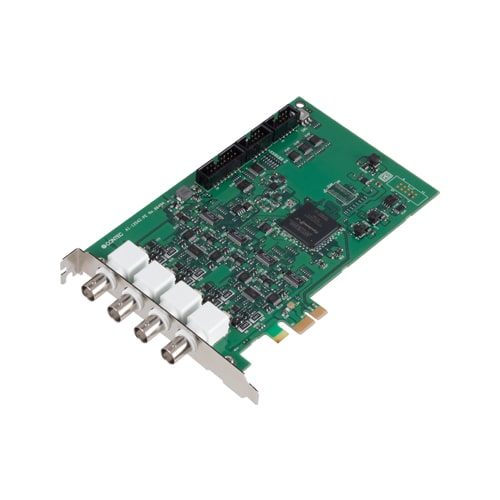

AI-1204Z-PE 模拟量输入 PCI Express 总线板卡 / 4ch(12bit 10Ms/s)

  • 新产品
  • RoHS Compliant
  • 标准保修3年
  • 延长保修可能
  • Maximum conversion speed is 10MSPS (100nsec), with simultaneous sampling of 4channels at a time
  • Sampling can be controlled by software, conversion data comparison, external trigger, event controller output, and similar start and stop conditions
  • Incorporates a synchronization control connector for synchronized operation
  • Bus master transfer function allow continuous data acquisition at high speed for a long period
  • BNC connector used for analog input pin
  • Functions and connectors are compatible with PCI card AI-1204Z-PCI
  • *
    有关延长保修的详细信息,请与我们联系。

订购信息・选件

产品模式与订货型号

型号 产品型号/适应规格
AI-1204Z-PE 模拟量输入 PCI Express 总线板卡 / 4ch(12bit 10Ms/s)
  • CE 欧洲合格认证

可选件

Cable

項目 項目名
BNC-B BNC cable (1m, 2m, 3m)
DT-E3 16pin post header -> D-SUB 15pin Bracket with Cable(150mm)
PCB15PS-P 15pin D-type(M) at Each-End, Shield Cable

Terminal

項目 項目名
FTP-15 Screw Terminal (M3 x 15)

Software Development Kit

項目 項目名
API-AIO(WDM) Windows version High-efficiency Analog I/O Driver
