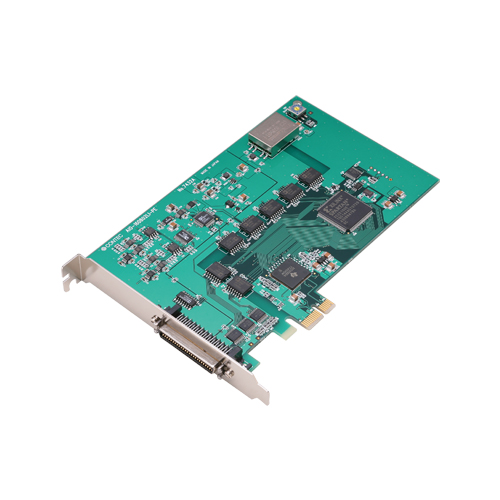

AIO-160802LI-PE 模拟量输入输出 PCI Express 总线板卡 / 8ch 模拟量输入(16bit 100ks/s) / 1ch 计数器 / 总线隔离 - 多功能DAQ L系列

  • RoHS Compliant
  • 标准保修3年
  • 延长保修可能
  • Bus isolated high precision analog input 8 channels / output 2 channels, each 4 channels for digital I/O, counter 1 channel
  • Functions and connectors are compatible with PCI compatible board ADAI16-8/2(LPCI)L
  • Bus isolation between PC and external analog input circuit by a digital isolator
  • The start/end of sampling can be controlled by software, comparison of conversion data, an external trigger, etc.
  • Equipped with buffer memory (1K data) that can be used in the FIFO or RING format
  • *
    有关延长保修的详细信息,请与我们联系。

订购信息・选件

产品模式与订货型号

型号 产品型号/适应规格
AIO-160802LI-PE 模拟量输入输出 PCI Express 总线板卡 / 8ch 模拟量输入(16bit 100ks/s) / 1ch 计数器 / 总线隔离 - 多功能DAQ L系列

可选件

Cable

項目 項目名
PCA50PS-P 50pin miniature ribbon connector to Open-Ended, Shield Cable (Mold type)
PCB50PS-P Both sides with connector shield cable for 50pin miniature ribbon connectors

Terminal

項目 項目名
ATP-8L BNC connectors for Analog I/O Board
EPD-50A Screw Terminal (M3 x 50)

Expansion Accessory Module

項目 項目名
ATBA-16L Buffer Amplifier Function Extension Box for analog input board
ATBA-8L Buffer Amplifier Function Extension Box for analog input board

Software Development Kit

項目 項目名
ACX-PAC(W32) ActiveX components sets for measurement system development of analog input and output
API-AIO(LNX) Analog I/O Driver for Linux
API-AIO(WDM) Windows version High-efficiency Analog I/O Driver
API-TIMER(W32) Timer Driver

Library Software

項目 項目名
ML-DAQ MATLAB compliant Data Acquisition Library
VI-DAQ VI Library of data acquisition for LabVIEW

Application software

項目 項目名
C-LOGGER Data Logger Software for Windows

Extended Warranty Service

項目 項目名
ESP-F6 Extended warranty service package (6 years service course)
