AIO-161601E3-PE 模拟量输入输出 PCI Express 总线板卡 /16ch 模拟量输入(16bit 100ks/s) / 1ch 模拟量输出 / 3ch 计数器 - 多功能DAQ E系列

  • RoHS Compliant
  • 标准保修3年
  • 延长保修可能

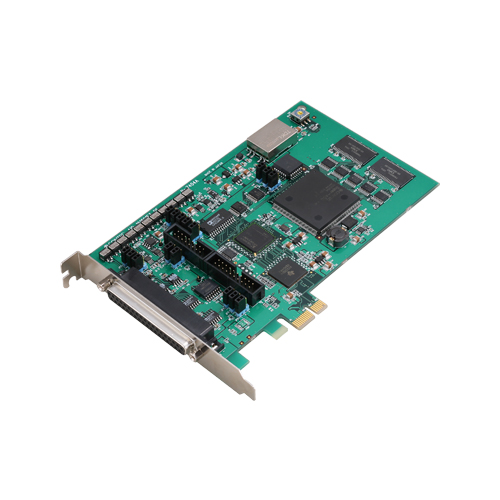

  • aio-161601e3-pe_rgb_96dpi_500x500モーダルで開く
  • Resolution :16-bit, combination speed : 10µsec/ch
  • Equipped with mass-storage buffer memory (16M data) that can be used in the FIFO or RING format
  • A variety of accessories are available for function expansion.
  • Supporting MATLAB and LabVIEW using dedicated libraries as plug-ins
  • Software-based calibration function
  • *
    有关延长保修的详细信息，请与我们联系。

订购信息・选件

产品模式与订货型号

型号 产品型号 适应规格
AIO-161601E3-PE 模拟量输入输出 PCI Express 总线板卡 /16ch 模拟量输入(16bit 100ks/s) / 1ch 模拟量输出 / 3ch 计数器 - 多功能DAQ E系列
  • VCCI

可选件

设备驱动程序

項目 項目名
API-AIO(98/PC) Windows version Analog I/O Driver
API-AIO(LNX) Analog I/O Driver for Linux
API-AIO(WDM) Windows version High-efficiency Analog I/O Driver
API-TIMER(W32) Timer Driver

开发支持工具

項目 項目名
ACX-PAC(W32) ActiveX components sets for measurement system development
DAQ-LV-WIN LabVIEW Data Acquisition Library
ML-DAQ MATLAB compliant Data Acquisition Library
VI-DAQ VI Library of data acquisition for LabVIEW

应用

項目 項目名
C-LOGGER Data Logger Software for Windows

扩展附件模块

項目 項目名
ATBA-16E Buffer Amplifier Function Extension Box for analog input card
ATCH-16A(PCI) 16Ch Extension sub card
ATII-8C isolation function extension accessories
ATLF-8A Gain amplifier function extension accessories
ATSS-16A Simultaneous sampling function extension accessories

电缆

項目 項目名
DT/E1 16pin Header to Open-Ended for Analog E series Boards-1.5m
DT-E3 16pin post header -> D-SUB 15pin Bracket with Cable(150mm)
PCA15P 15pin D-type(M) to Open-Ended, Flat Cable
PCA37P 37pin D-type(M) to Open-Ended, Flat Cable
PCA37PS-P A one end connector (Mold type) shield cable for 37 pin D-SUB connector
PCB15P 15pin D-type(M) at Each-End, Flat Cable
PCB15PS-P 15pin D-type(M) at Each-End, Shield Cable
PCB37P 37pin D-type(M) at Each End, Flat Cable
PCB37PS-P 37pin D-type(M) at Each End, Shield Cable
PCC16PS-1.5 Single End Coaxial Cable for 16ch Input(1.5m)
PCC16PS-3 Single End Coaxial Cable for 16ch Input(3m)
PCD8PS-3 2 wire Shield Cable for 8ch Differential Input (3m)

终端

項目 項目名
ATP-16E BNC Connectors terminal box for Analog I/O Card
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
EPD-37 Screw Terminal (M3.5 x 37)
FTP-15 Screw Terminal (M3 x 15)

延长保修服务

項目 項目名
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
