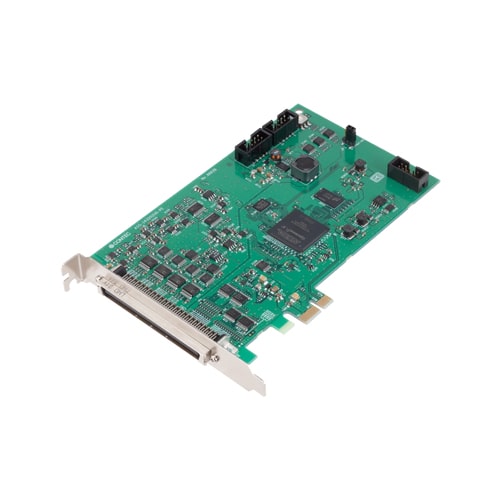

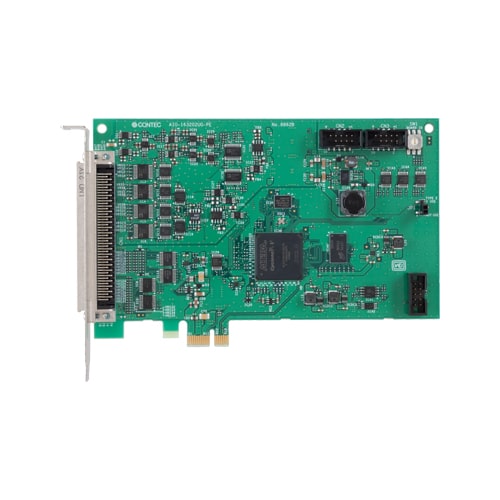

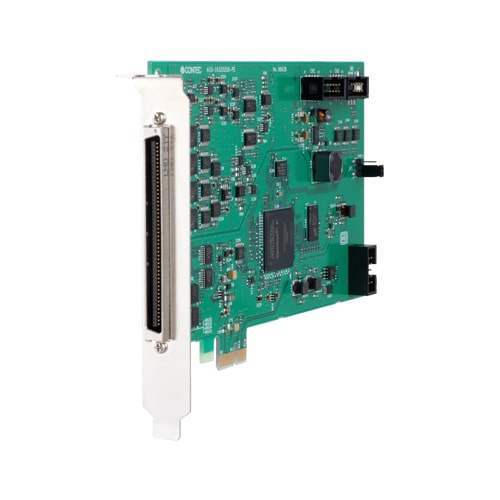

AIO-163202UG-PE 模拟量输入输出 PCI Express 总线板卡 / 32ch 模拟量输入(16bit 1MSPS) / 2ch 模拟量输出计数器 - 多功能DAQ G系列

High-performance, multifunction single DAQ device with analog and digital input/output and counter functions
Adopts and improves on the functions of the Analog E Series with compatibility for the Analog F Series
DMA bus master transfer function for high-speed, continuous sampling
Built-in event controller for advanced synchronization control
Synchronized operation of up to 16 devices (connection via synchronization connector)
Supported to the data logger software [C-LOGGER]

其他型号

系列	模拟量 G(High-speed, High-precision Multi-function)
总线规格	PCI Express
类型	Short Size
所用连接器	1.27mm-pitch 96-pin (Male); 2x Pin header 10-pin (Male)

输入通道	Single-ended 32-ch (Differential 16-ch)
输入范围	±10V; ±5V; ±2.5V; 0 to 10V; 0 to 5V; 0 to 2.5V
ADC 分辨率	16-bit
采样频率	1μsec/ch (max.)
输入缓冲存储器	128M Word
输出通道	2-ch
输出范围	±10V; ±5V; ±2.5V; ±1.25V; 0 to 10V; 0 to 5V; 0 to 2.5V
DAC 分辨率	16-bit
更新率	10μsec (max.)
输出缓冲存储器	256k Word

输入点数	8-ch/16-ch
输出点数	8-ch/16-ch
双向输入输出点数	16点
响应时间（输入）	200nsec (max.)
响应时间（输出）	200nsec (max.)
工作电压（输入）	3.3VDC-LVTTL
工作电压（输出）	3.3VDC-LVTTL
输入电路	Non-isolated LVTTL level input (Positive logic)
输出电路	Non-isolatedLVTTL level output (Positive logic)
内置外部电路用电源	-

支持的操作系统	Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Linux
