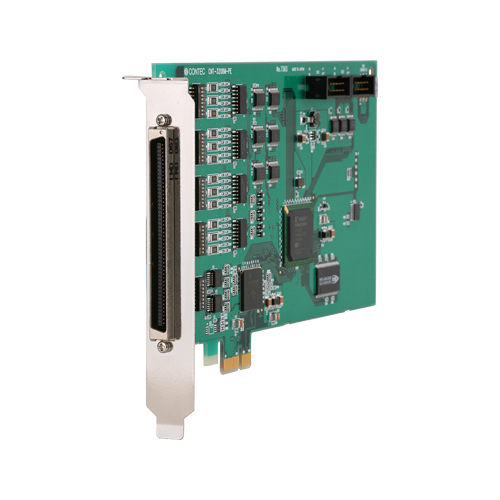

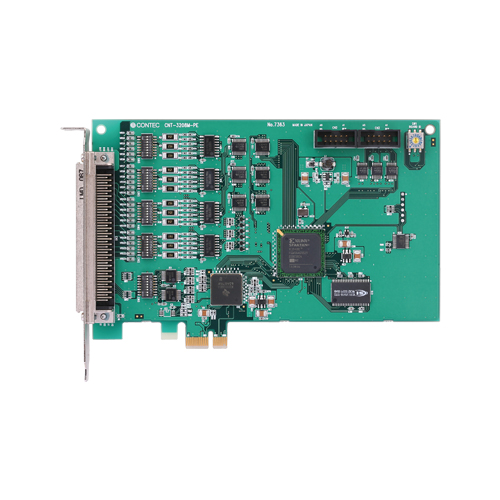

CNT-3208M-PE 计数 PCI Express 总线板卡 8ch (32bit 上/下计数 10MHz) / 增量编码器接口

  • RoHS Compliant
  • 标准保修3年
  • 延长保修可能
  • 8ch 32-bit up/down counter, high speed pulse input of 10MHz, and disconnection detection are available.
  • Bus master transfer function is provided.
  • Digital filter function to prevent wrong recognition of input signals due to noises is provided.
  • Windows compatible driver libraries are attached.
  • The synchronization control connectors are provided
  • Functions and connectors are compatible with PCI compatible card CNT32-8M(PCI).
  • *
    有关延长保修的详细信息,请与我们联系。

订购信息・选件

产品模式与订货型号

型号 产品型号/适应规格
CNT-3208M-PE 计数 PCI Express 总线板卡 8ch (32bit 上/下计数 10MHz) / 增量编码器接口
  • VCCI
  • CE 欧洲合格认证

可选件

Cable

項目 項目名
PCA96P A one end connector flat cable for 96 pin Half-Pitch connector
PCA96PS-P A one end connector shield cable for 96 pin Half-Pitch connector (Mold type)
PCB96P Flat Cable with Connectors on both sides for 96-pin Half Pitch Connectors
PCB96PS-P Both sides with connector shield cable for 96 pin Half-Pitch connector(Mold type)

Terminal

項目 項目名
DTP-64A Screw Terminal (M3 x 96)
EPD-96 Screw Terminal (M3.5 x 96)
EPD-96A Screw Terminal (M3 x 96)

Software Development Kit

項目 項目名
ACX-PAC(W32) ActiveX components sets for measurement system development
API-CNT(WDM) Windows Driver for Counter Input Driver
API-TIMER(W32) Timer Driver

Extended Warranty Service

項目 項目名
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
