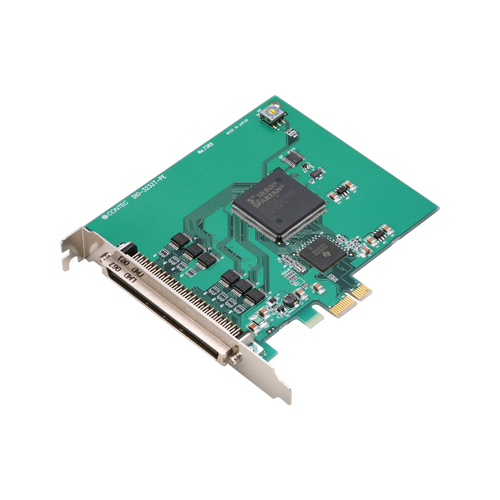

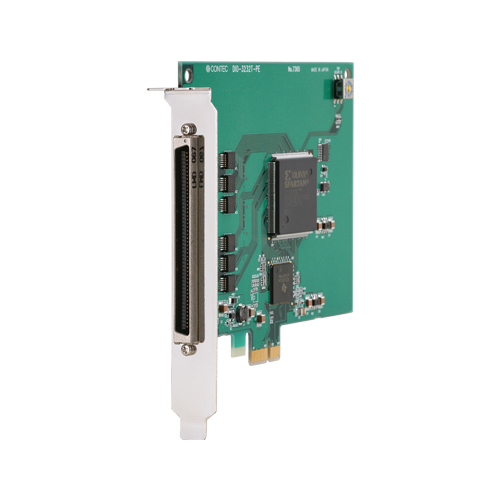

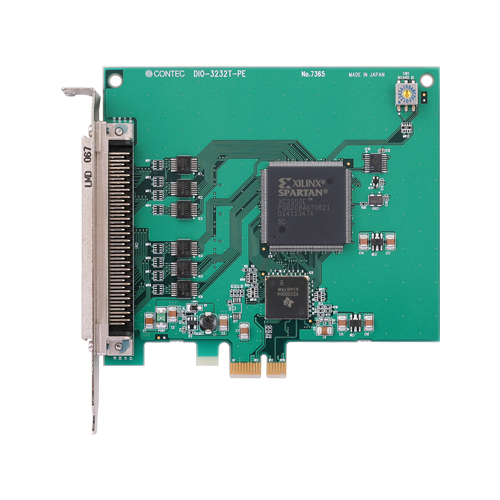

DIO-3232T-PE 数字量输入输出 PCI Express总线板卡 32点/32点 (非绝缘5VDC-TTL)

标准保修3年
延长保修可能

Unisolated TTL level input, unisolated open-collector output
You can use 32 input signals as interrupt request signals.
This product has a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering.
Windows/Linux compatible driver libraries are attached
Functions and connectors are compatible with PCI compatible card PIO-32/32T(PCI)H

*
有关延长保修的详细信息，请与我们联系。

支持的操作系统

订购信息・选件

产品模式与订货型号

型号	产品型号	适应规格
DIO-3232T-PE	数字量输入输出 PCI Express总线板卡 32点/32点 (非绝缘5VDC-TTL)

可选件

Device Drivers

項目	項目名
API-DIO(98/PC)	Windows version Digital I/O Driver
API-DIO(LNX)	Linux version Digital I/O Driver
API-DIO(WDM)	Windows Driver for Digital I/O Driver
API-TIMER(W32)	Timer Driver

Development Support Tools

項目	項目名
ACX-PAC(W32)	ActiveX components sets for measurement system development
DAQ-DNC-FE	A collection of .NET components for DAQfast measurement system development.
DAQ-LV-WIN	LabVIEW Data Acquisition Library
VI-DAQ	VI Library of data acquisition for LabVIEW

Expansion Accessory Module

項目	項目名
CM-32L	Signal monitor Accessory for Digital I/O
CM-64L	Signal monitor Accessory for Digital I/O

Cable

項目	項目名
PCA96P	A one end connector flat cable for 96 pin Half-Pitch connector
PCA96PS-P	A one end connector shield cable for 96 pin Half-Pitch connector (Mold type)
PCB96P	Flat Cable with Connectors on both sides for 96-pin Half Pitch Connectors
PCB96PS-P	Both sides with connector shield cable for 96 pin Half-Pitch connector(Mold type)
PCB96WS-P	96pin Half-Pitch to 2 x 37pin D-type(M), Shield Cable

Terminal

項目	項目名
DTP-3C	General Purpose Terminal
DTP-4C	Screw Terminal
DTP-64A	Screw Terminal (M3 x 96)
EPD-37	Screw Terminal (M3.5 x 37)
EPD-37A	Screw Terminal (M3 x 37)
EPD-96	Screw Terminal (M3.5 x 96)
EPD-96A	Screw Terminal (M3 x 96)

其他配件

項目	項目名
CCB-96	Connector conversion card

Extended Warranty Service

項目	項目名
ESP-F6	Extended warranty service package (6 years service course) (Japan only)
