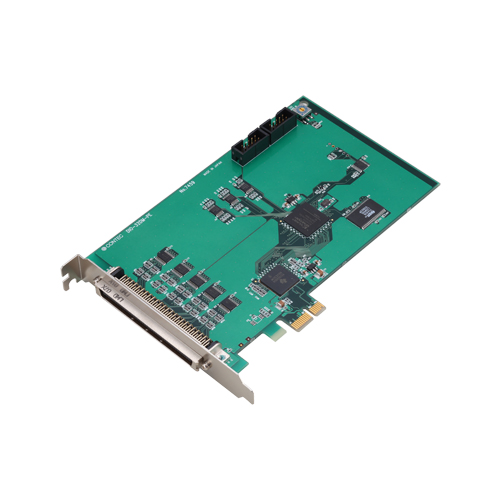

DIO-32DM-PE 数字量输入输出 PCI Express总线 板卡 双方向32点 (总线主控传输 非绝缘3.3VDC-LVTTL)

  • 停产商品
  • 标准保修3年
  • 修理承接期限 : 2020/01/30

览推荐替代产品

※即使在期间内,也会有不能接受修复.

  • 32channels of unisolated LVTTL level I/O (32 input channels / each 16channels for I/O / 32 output channels are selected.)
  • Sampling and generating with transfer rate at 20MHz maximum
  • A synchronization control connector is provided for synchronized control of multiple cards.
  • You can use Max. 4 input signals as interrupt request signals at the time of using the general-purpose I/O.
  • Windows/Linux compatible driver libraries are attached.
  • *
    有关延长保修的详细信息,请与我们联系。

订购信息・选件

替代推荐产品

产品名称 说明
数字量输入输出 PCI Express总线 板卡 双方向32点 (总线主控传输 非绝缘3.3VDC-LVTTL)
DIO-32DM2-PE
The connector and the connector-pin definitions are compatible. Please refer the manual for other specification differences.

产品模式与订货型号

型号 产品型号/适应规格
DIO-32DM-PE 数字量输入输出 PCI Express总线 板卡 双方向32点 (总线主控传输 非绝缘3.3VDC-LVTTL)
  • VCCI

可选件

Cable

項目 項目名
PCA96P A one end connector flat cable for 96 pin Half-Pitch connector
PCA96PS-P A one end connector shield cable for 96 pin Half-Pitch connector (Mold type)
PCB96P Flat Cable with Connectors on both sides for 96-pin Half Pitch Connectors
PCB96PS-P Both sides with connector shield cable for 96 pin Half-Pitch connector(Mold type)

Terminal

項目 項目名
DTP-64A Screw Terminal (M3 x 96)
EPD-96 Screw Terminal (M3.5 x 96)
EPD-96A Screw Terminal (M3 x 96)

Software Development Kit

項目 項目名
API-DIO(WDM) Windows Driver for Digital I/O Driver
API-TIMER(W32) Timer Driver

Extended Warranty Service

項目 項目名
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
