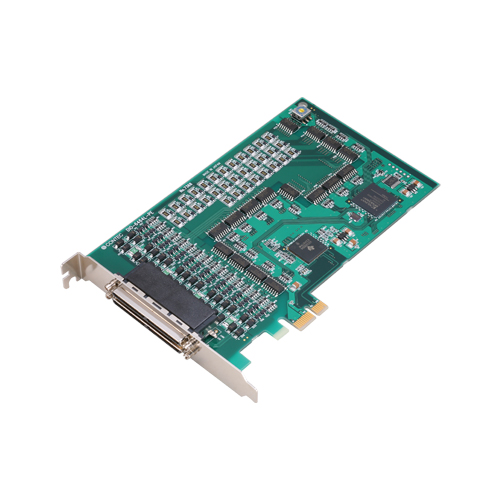

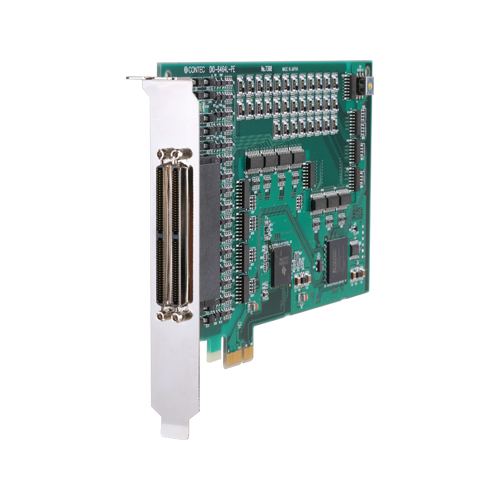

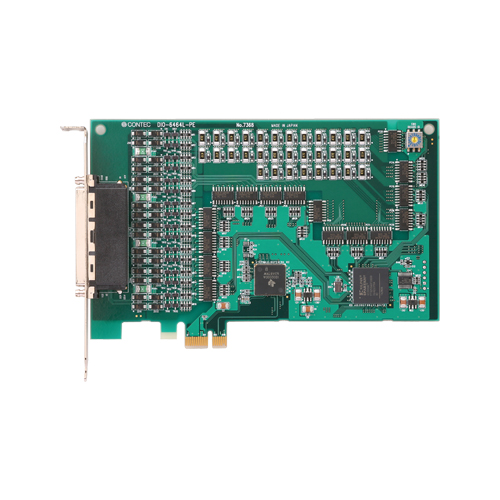

DIO-6464L-PE 数字量输入输出 PCI Express总线 板卡 64点/64点 (光电隔离 12-24VDC)

  • RoHS Compliant
  • 标准保修3年
  • 延长保修可能
  • Optocoupler isolated inputs (compatible with current sink output), and Optocoupler isolated open-collector outputs (current sink type)
  • Optocoupler bus isolation
  • You can use 16 input signals as interrupt request signals.
  • Windows/Linux compatible driver libraries are attached.
  • Output circuits include zener diodes for surge voltage protection and poly-switches for overcurrent protection.
  • Functions and connectors are compatible with PCI compatible board PIO-64/64L(PCI)H.
  • *
    有关延长保修的详细信息,请与我们联系。

订购信息・选件

产品模式与订货型号

型号 产品型号/适应规格
DIO-6464L-PE 数字量输入输出 PCI Express总线 板卡 64点/64点 (光电隔离 12-24VDC)
  • CE 欧洲合格认证

可选件

Cable

項目 項目名
PCA100P 100pin 0.8mm-pitch Connector to Open-Ended, Flat Cable
PCB10096PS 96pin 1.27mm Pitch Conversion Shield Cable for 100pin 0.8mm Pitch Connector
PCB100PS Both sides with connector shield cable for 100 pin 0.8mm pitch connectors
PCB100WS 37pin D-SUB x2 Distribution Shield Cable for 100pin 0.8mm Pitch Connector

Terminal

項目 項目名
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
DTP-64A Screw Terminal (M3 x 96)
EPD-100A Screw Terminal (M3 x 100)
EPD-37 Screw Terminal (M3.5 x 37)
EPD-96 Screw Terminal (M3.5 x 96)
EPD-96A Screw Terminal (M3 x 96)

Expansion Accessory Module

項目 項目名
CM-64L Signal monitor Accessory for Digital I/O

Other Accessories

項目 項目名
CCB-96 Connector conversion board

Software Development Kit

項目 項目名
ACX-PAC(W32) ActiveX components sets for measurement system development of analog input and output
API-DIO(WDM) Windows Driver for Digital I/O Driver
API-TIMER(W32) Timer Driver

Extended Warranty Service

項目 項目名
ESP-F6 Extended warranty service package (6 years service course)
