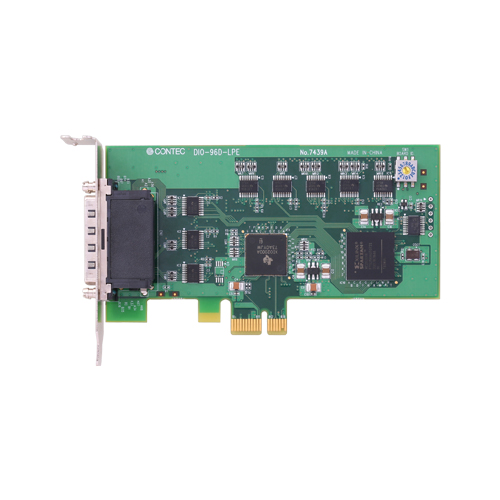

DIO-96D-LPE 数字量输入输出 Low Profile PCI Express总线板卡双方向96点 (非绝缘3.3VDC-LVTTL)

标准保修3年
延长保修可能

This card can be used to input/output 96 points bi-directional digital corresponding to to the equivalence to the i8255 mode 0.
You can use up to 96channels of the input signals as interrupt events.
This product has a digital filter function to prevent wrong recognition of input signals from carrying noise or a chattering.
Windows/Linux compatible driver libraries are attached.
Support for both of Low Profile and standard size slots

*
有关延长保修的详细信息，请与我们联系。

支持的操作系统

机能・规格

扩展模块

系列
总线规格	PCI Express
类型	Low Profile
所用连接器	2x 0.8mm-pitch 68-pin (Female)

数字信号输入和输出

输入点数	-
输出点数	-
双向输入输出点数	96-ch
响应时间（输入）	200nsec (max.)
响应时间（输出）	200nsec (max.)
工作电压（输入）	3.3VDC-LVTTL
工作电压（输出）	3.3VDC-LVTTL
输入电路	Non-isolated LVTTL level input (Positive logic)
输出电路	Non-isolatedLVTTL level output (Positive logic)
内置外部电路用电源	-

支持的操作系统

支持的操作系统	Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux

Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux

*
各个软件能够支持的操作系统是不同的。关于各个软件所支持的操作系统以及发行版本的信息，请参阅该软件的Readme文件和在线帮助程序。
