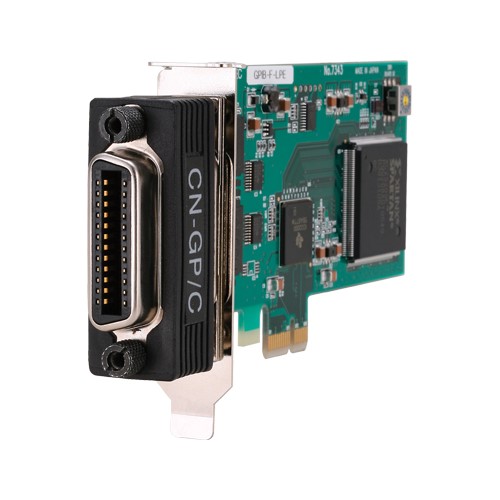

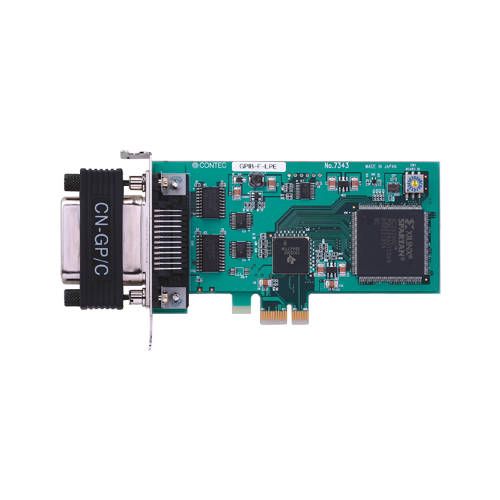

GPIB-F-LPE High-performance & High-speed GPIB Interface Card (Low Profile Size) for PCI Express

  • RoHS Compliant
  • 标准保修3年
  • 延长保修可能
  • モーダルで開く

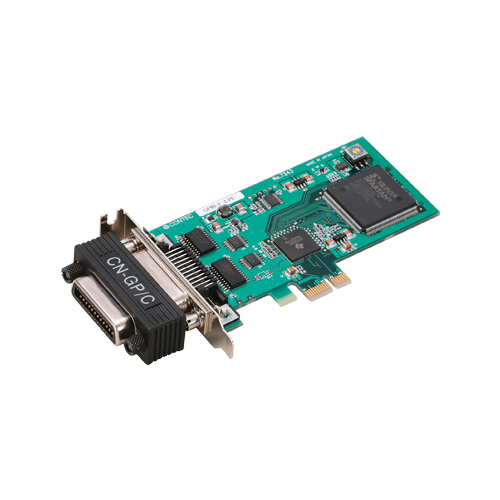

  • gpib-f-lpe_lpci_rgb_96dpi_500x500モーダルで開く
  • モーダルで開く
  • モーダルで開く
  • Capable to communicate with GPIB communication which is compatible to IEEE-488.1/488.2 standards at 1.5 M byte/sec maximum
  • Supports bus master operation
  • Employs a buffer memory, 2Kbytes for transmission and 2 Kbytes for reception
  • Employs a high speed GPIB controller developed by CONTEC and provides steady-supply
  • Support for both of Low Profile and standard size slots
  • Windows/LabVIEW compatible support software is offered
  • *
    有关延长保修的详细信息，请与我们联系。

概要・特点

This product is a PCI Express bus-compatible interface board with support for bus master operation and which complies with IEEE-488.1 and IEEE-488.2. This product can be used in a PC to control communications with devices that support the GPIB interface and read GPIB bus line data. The GPIB-F-LPE can also analyze the signal on the GPIB bus using the built-in memory (GPIB bus analyzer function). This product supports a low-profile size slot and, if replaced with the supplied bracket, supports a standard size slot, too. Windows/LabVIEW device driver is supported with this product.

  • Capable to communicate with GPIB communication which is compatible to IEEE-488.1/488.2 standards at 1.5 M byte/sec maximum
    • Capable to communicate with any equipment which is compatible to IEEE-488.1/488.2 standards with transfer rate at 1.5 Mbyte/sec maximum. Capable to set this product to whether a master (controller) or a slave.
  • Supports bus master operation
    • The bus master data transfer function enables large quantities of data to be transferred between the board and PC without loading the CPU.
  • Employs a buffer memory, 2Kbytes for transmission and 2 Kbytes for reception
    • Employs a buffer memory, 2 Kbytes dedicated to transmission and 2Kbytes dedicated to reception, in order to reduce the load to the CPU when transmitting/receiving data.
  • Employs a high speed GPIB controller developed by CONTEC and provides steady-supply
    • This product employs CONTEC's self-developed high speed GPIB controller (μPD7210 register-compatible), which provides users steady-supply with peace of mind.
  • Support for both of Low Profile and standard size slots
    • Support for both of Low Profile and standard size slots (interchangeable with a bundled bracket).
  • Windows/LabVIEW compatible support software is offered
    • The support software offered on the CONTEC website makes it possible to create applications of Windows/LabVIEW. In addition, supplies a diagnostic program to confirm hardware operation and to perform a basic communication test with connected equipment.
