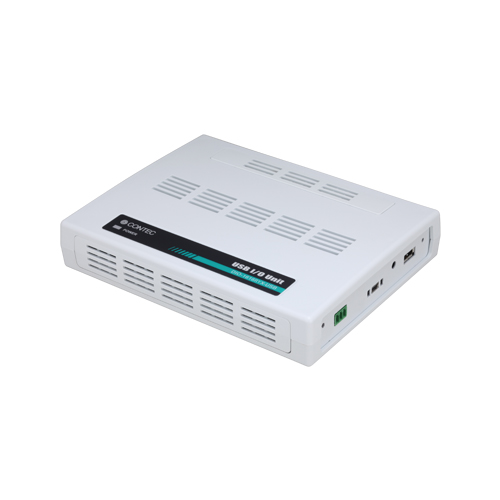

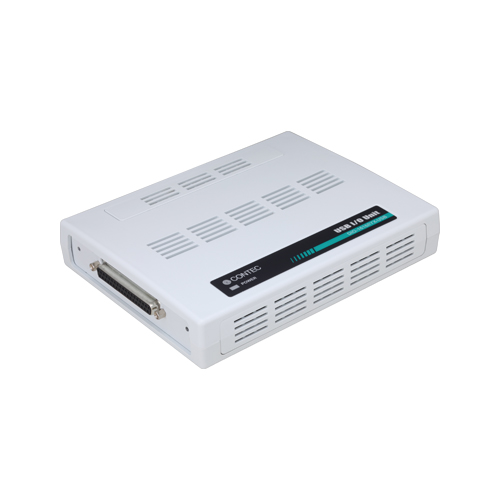

DIO-1616RYX-USB 数字量输入输出 USB 单元 16点/16点 (光电隔离输入12-24VDC, 半导体继电器输出,最大120VAC或120VDC) - X系列

  • RoHS Compliant
  • 标准保修1年
  • 延长保修可能
  • Optocoupler isolated input (compatible with current sink output/current source output) and semiconductor-relay output
  • Optocoupler and semiconductor-relay bus isolation
  • You can use 16 input signals as interrupt request signals.
  • USB HUB function
  • Connectors are compatible with PCI/PCI Express bus-compatible board
  • Windows compatible driver libraries are provided.
  • *



型号 产品型号/适应规格
DIO-1616RYX-USB 订购信息・选件 | 数字量输入输出 USB 单元 16点/16点 (光电隔离输入12-24VDC, 半导体继电器输出,最大120VAC或120VDC) - X系列
  • CE 欧洲合格认证
  • FCC制度认证
  • VCCI


Expansion Accessory Module

項目 項目名
CM-32L Signal monitor Accessory for Digital I/O


項目 項目名
PCA37P 37pin D-type(M) to Open-Ended, Flat Cable
PCA37PS-P A one end connector (Mold type) shield cable for 37 pin D-SUB connector
PCB37P 37pin D-type(M) at Each End, Flat Cable
PCB37PS-P 37pin D-type(M) at Each End, Shield Cable


項目 項目名
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
EPD-37 Screw Terminal (M3.5 x 37)

Power Supply / AC Adapter

項目 項目名
POA200-20-2 AC-DC Power Adaptor(5VDC, 2A)

Other Accessories

項目 項目名
BRK-USB-X USB I/O Unit Bracket for X series

Software Development Kit

項目 項目名
ACX-PAC(W32) ActiveX components sets for measurement system development
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver

Library Software

項目 項目名
DAQ-LV-WIN LabVIEW Data Acquisition Library
