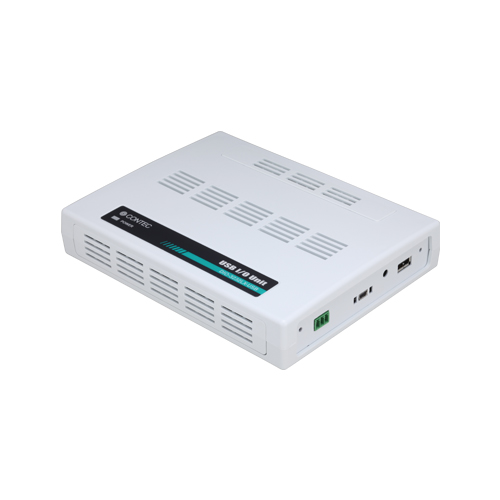

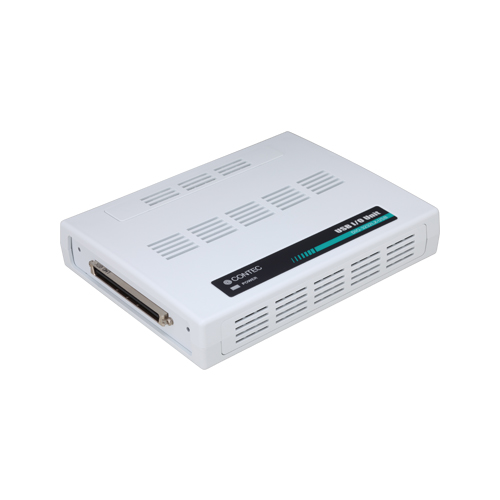

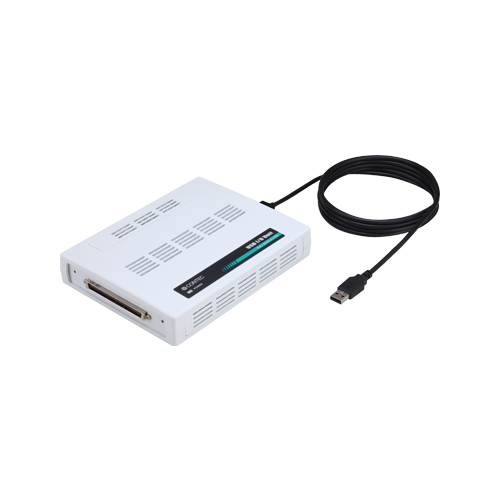

DIO-3232LX-USB 数字量输入输出 USB 单元 32点/32点 (光电隔离 12-24VDC) - X系列

  • RoHS Compliant
  • 标准保修1年
  • 延长保修可能
  • モーダルで開く
  • モーダルで開く
  • dio-3232lx-usb_r_rgb_96dpi_500x500モーダルで開く
  • 32 channels of Optocoupler isolated inputs (compatible with current sink output) and 32 channels of Optocoupler isolated open-collector outputs (current sink type)
  • USB HUB function
  • You can use 32 input signals as interrupt request signals
  • Output circuits include zener diodes for surge voltage protection and poly-switches for overcurrent protection.
  • Connectors are compatible with PCI/PCI Express bus-compatible board
  • Windows compatible driver libraries are provided.
  • *
    有关延长保修的详细信息，请与我们联系。

订购信息・选件

产品模式与订货型号

型号 产品型号 适应规格
DIO-3232LX-USB 数字量输入输出 USB 单元 32点/32点 (光电隔离 12-24VDC) - X系列
  • CE 欧洲合格认证
  • FCC制度认证
  • VCCI

可选件

Device Drivers

項目 項目名
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver

Development Support Tools

項目 項目名
ACX-PAC(W32) ActiveX components sets for measurement system development
DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
DAQ-LV-WIN LabVIEW Data Acquisition Library
VI-DAQ VI Library of data acquisition for LabVIEW

Expansion Accessory Module

項目 項目名
CM-32L Signal monitor Accessory for Digital I/O
CM-64L Signal monitor Accessory for Digital I/O

Cable

項目 項目名
PCA96P A one end connector flat cable for 96 pin Half-Pitch connector
PCA96PS-P A one end connector shield cable for 96 pin Half-Pitch connector (Mold type)
PCB96P Flat Cable with Connectors on both sides for 96-pin Half Pitch Connectors
PCB96PS-P Both sides with connector shield cable for 96 pin Half-Pitch connector(Mold type)
PCB96WS-P 96pin Half-Pitch to 2 x 37pin D-type(M), Shield Cable

Terminal

項目 項目名
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
DTP-64A Screw Terminal (M3 x 96)
EPD-37 Screw Terminal (M3.5 x 37)
EPD-96 Screw Terminal (M3.5 x 96)
EPD-96A Screw Terminal (M3 x 96)

Power Supply / AC Adapter

項目 項目名
POA200-20-2 AC-DC Power Adaptor(5VDC, 2A)

其他配件

項目 項目名
BRK-USB-X USB I/O Unit Bracket for X series
CCB-96 Connector conversion card
