概要・特点

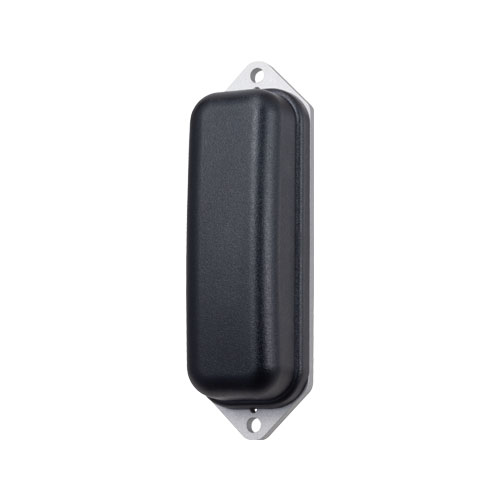

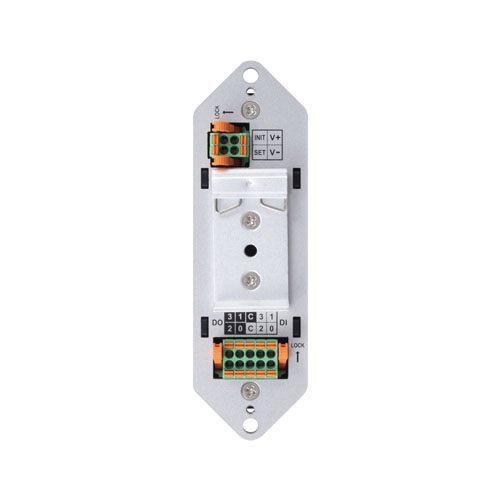

This product is a digital input/output unit that transmits and receives digital signals wirelessly. It is equipped with 4 digital signal outputs of semiconductor
relays and 4 12 -24 VDC photocoupler insulated inputs (current sink/source output compatible). The ultra-compact, ultra-low power consumption * 1 design enables wireless digital input and output via Wi-Fi access points. By using the provided driver library, API-DIO (WDM), Windows application software can be created using various programming languages that support Win32API functions, such as Visual Basic and Visual C++. Download the driver library from our company
website.
-
*1
Measurement conditions: Average current is 0.84 mA (60VDC) at 2.4 GHz, when DI/DO are all OFF, and when LED is OFF, during normal operation (approximately 1 second communication cycle). The value for wireless communication is based on the average value, with allowance for variation. When 5 GHz is set and LED is ON, current consumption will increase from this value. This value is for use as a standard for battery life and constant power consumption.
-
Ultra-compact, ultra-low power consumption

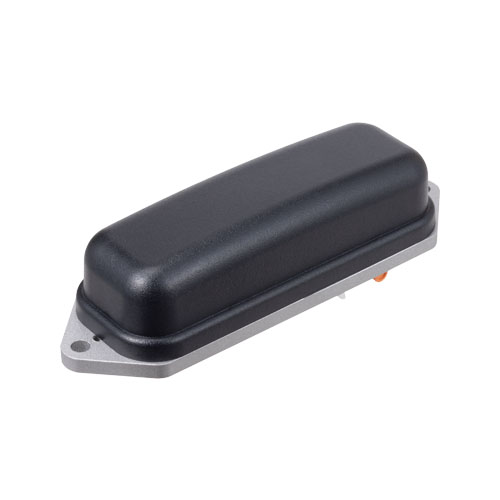

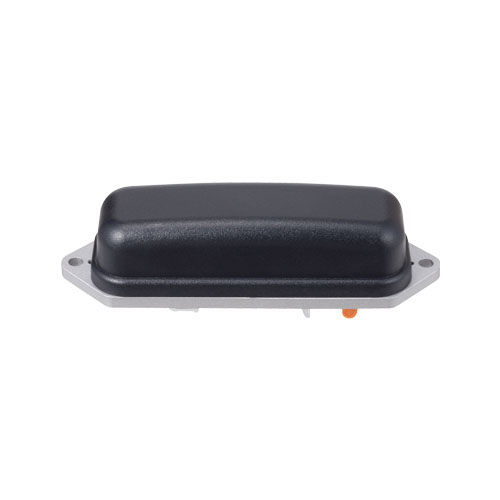

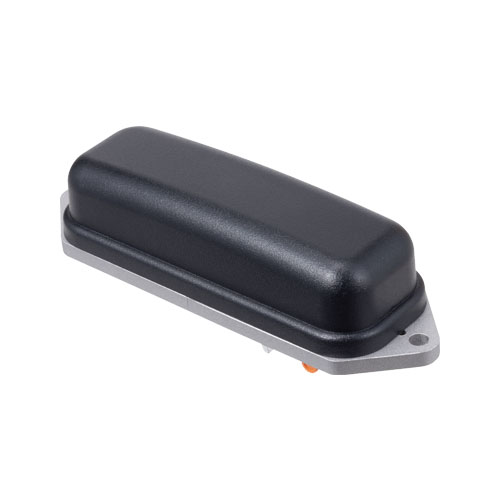

- Extremely compact product size of 128 (W) x 39 (D) x 30 (H), measurement conditions: 2.4 GHz under normal operation (communication cycle of approximately 1 second), DI/DO all OFF, average current in LED OFF is 0.84 mA (60VDC), ultra-low power consumption design.
-
Wi-Fi 4 (IEEE 802.11n) compliant high-speed communication 2.4 GHz and 5 GHz are available
- The availability of the 5 GHz band in addition to the 2.4 GHz band reduces radio interference and creates a faster and more stable communication environment.
-
Voltage drop automatic shutdown function
- Equipped with a voltage-monitoring automatic shutdown function that periodically monitors the battery voltage with the built-in AD converter and turns off the internal semiconductor switch to shut down the product when the battery voltage falls below a user-specified threshold.
-
Supports wide-range power supply
- Supports wide-range power supply of 5.5 - 60VDC and can be used in various power supply environments.
-
Supports a wide range of temperature environments
- Supports ambient temperature environments from -20 to +75°C and can be used in a wide range of temperature environments.
-
Windows support device driver
- Using the device driver API-TOOL makes it possible to create applications of Windows.
