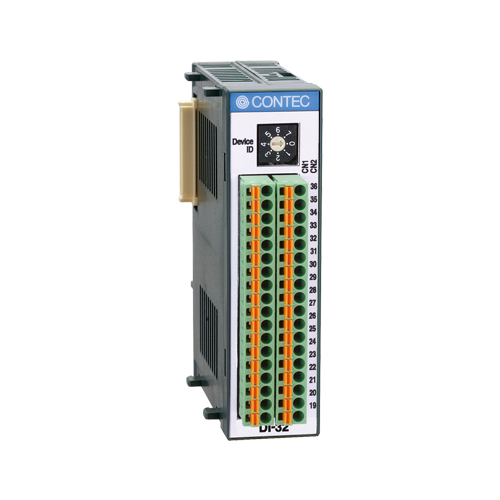

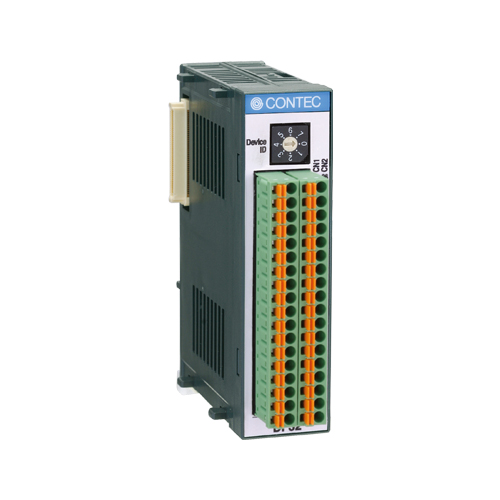

DI-32(FIT)GY 数字量输入 F&eIT总线 I/O模块 32点 (光电隔离 12-24VDC)

• 概要・特点
• 机能・规格
• 订购信息・选件
• 技术支持・下载

概要・特点

This module performs to input digital signals from external devices, can be used by connecting it to F&eIT series controller modules . DI-32(FIT)GY can be connected to DI-32(USB) respectively, to increase the number of I/O channels. Opto-isolation prevents electrical influence from external devices to the host CPU. DI-32(FIT)GY has 32 input channels per module.

• • DI-32(FIT)GY has 32 channel digital signal input, treating 16 channels as a group and handling two groups per operation.
• • Input section is ready to accept both the current sinking output and current source output.
• • Isolated I/O operations using an opto-coupler improves noise immunity.
• • It has a digital filter to prevent input signals from carrying noise or a chattering..All of the input signals can be used as interrupt inputs. Interrupt trigger edge of the input signal is also selectable.
• • A rotary switch allows you to set device IDs to help you keep track of device numbers.
• • Like other F&eIT series products, the module has a 35mm DIN rail mounting mechanism as standard. A connection to a controller module can be effected on a lateral, stack basis in a unique configuration, which permits a simple, smart system configuration without the need for a backplane board.
