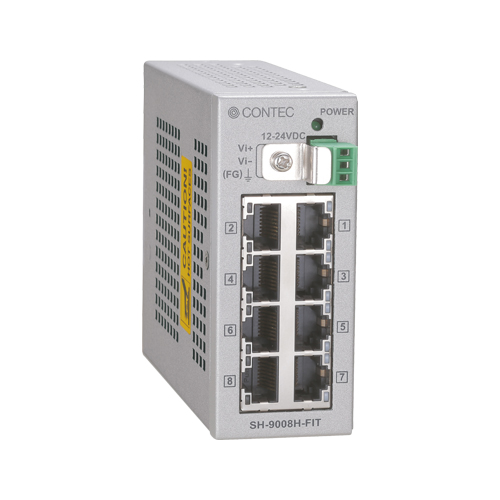

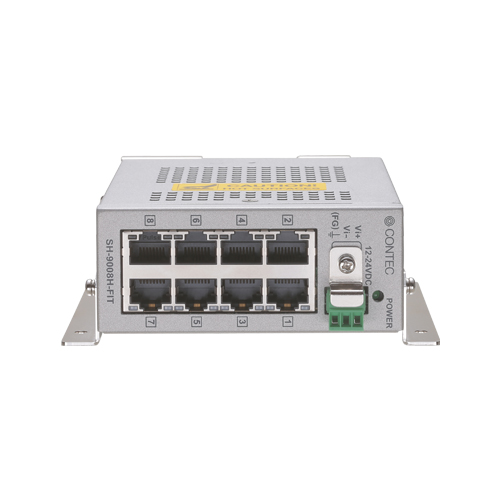

SH-9008H-FIT 10/100/1000M AUTO-MDIX Industrial Switching HUB( For DIN rail, 8port)

  • RoHS Compliant
  • 标准保修1年
  • 延长保修可能
  • Compact-sized (39 (W) × 120 (D) ×94 (H) mm) unit equipped with 8 ports capable of 1000BASE-T
  • For Jumbo Frame
  • Auto MDI/MDI-X feature, auto-negotiation feature
  • Automatic power adjusting function
  • Flexible installation orientation
  • Capable of running on a wide range of input voltages (12 to 24VDC)
  • *
    有关延长保修的详细信息,请与我们联系。

概要・特点

SH-9008H-FIT is a compact-sized [39(W) × 120(D) × 94(H) mm] industrial switching HUB unit that is compliant with the IEEE802.3ab (1000BASE-T)/IEEE802.3u (100BASE-TX)/ IEEE802.3 (10BASE-T) standards. Its features include Jumbo Frame support, AutoMDI/MDI-X, auto-negotiation, and automatic power adjusting function. The automatic power adjusting function can reduce the power consumption by up to 60%. *1 With fan less configuration, SH-9008H-FIT is suitable for places where silence is required. In addition, the adoption of metal casing with great radiation performance enables the unit to be used in ambient temperatures of 0 to 50°C. A DIN rail mounting mechanism and the mounting brackets provided with the unit enable various types of installation. Please read this manual carefully so that you can build a system by connecting the switching HUB unit to external devices.
*1 The comparison result of measured values when all (eight) ports are in operation with those when all (eight) ports are unused.

  • Compact-sized (39 (W) × 120 (D) ×94 (H) mm) unit equipped with 8 ports capable of 1000BASE-T
    • The compact-sized unit enclosure (39 (W) ×120 (D) ×94 (H) mm) is equipped with the 8 ports that are compliant with IEEE802.3ab (1000BASE-T)/IEEE802.3u (100BASE-TX)/IEEE802.3 (10BASE-T). With fan less configuration, this product is suitable for places where silence is required. In addition, the adoption of metal casing with great radiation performance provides the operating ambient temperature of 0 to 50°C.
  • For Jumbo Frame
    • It is compatible with Jumbo Frame that increases transfer rate. Connection with Jumbo Frame compatible devices increases data transfer rate and contributes to increased transfer rate and reduced CPU load.
  • Auto MDI/MDI-X feature, auto-negotiation feature
    • The Auto MDI/MDI-X feature can automatically recognize the cable type, straight-through cable or crossover cable, to prevent problems using the wrong cable type. Also, the auto-negotiation feature can automatically recognize and choose the best communication rate (10/100/1000Mbps) and method (half/full duplex) available.
  • Automatic power adjusting function
    • This function can automatically adjust the power consumption of unused ports, enabling reduced power consumption by up to 60%. *1
      *1 The comparison result of measured values when all (eight) ports are in operation with those when all (eight) ports are unused.
  • Flexible installation orientation

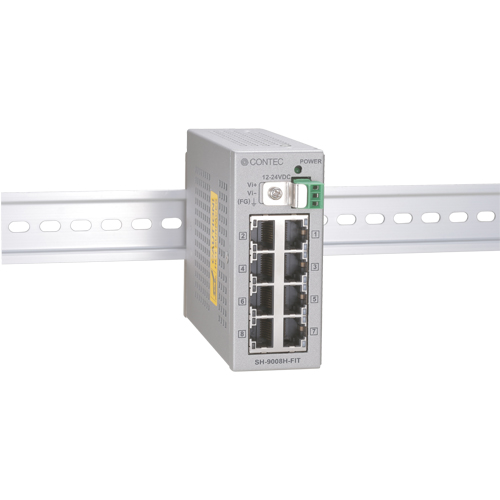

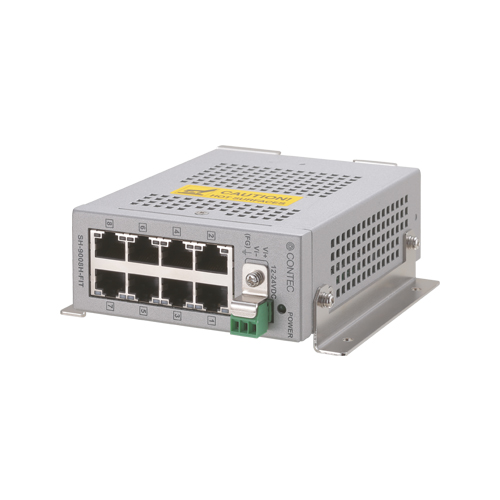

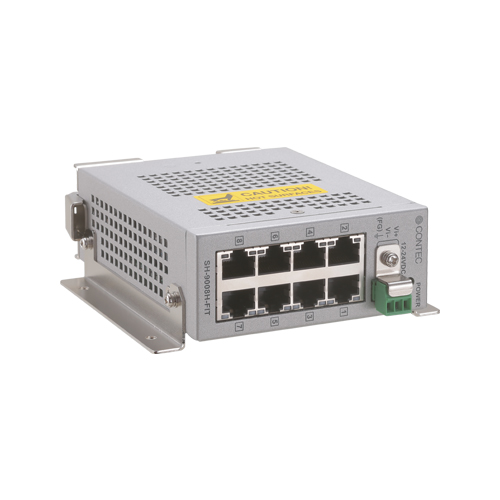

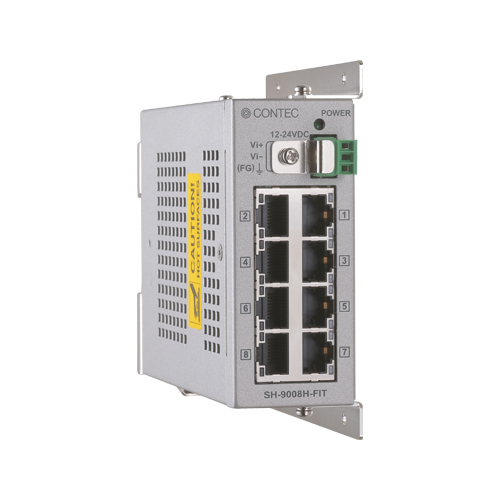

    • The unit is equipped with a 35mm DIN rail mounting mechanism as standard. Also, the mounting brackets provided with the unit make installation in any orientation possible (floor, ceiling, etc.).
  • Capable of running on a wide range of input voltages (12 to 24VDC)
    • The unit will function normally even if input voltage fluctuates within the acceptable range. In addition, the power connector includes an FG terminal.
