概要・特点

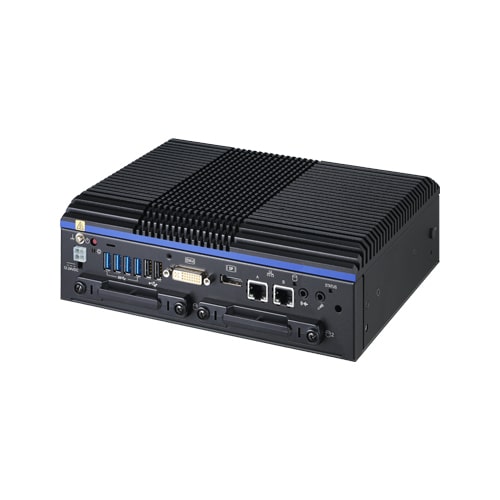

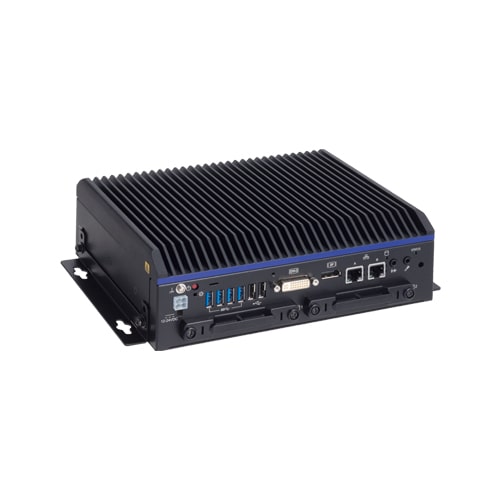

This product is a fanless, high-performance embedded computer using 13th generation technology. Intel® CPU processor. This product is available in high-performance and low-power Embedded SKUs Choice of hybrid architecture*¹ Core™ i7-13700TE or Core™ i5-13500TE or classic Core™ i3-13100TE processor for the CPU.
Dual 2.5 GbE LAN , USB 3.2 Gen2 , DisplayPort , DVI-I, RS-232C , DIO and other interfaces and an installable slot 2.5-inch SATA hard drive bay unit, with built-in TPM chip to enhance information security, this the product is most suitable for display images including digital signage and factory automation control applications.
Embedded-type CPU has been adopted. The use of readily available parts ensures the product to be applied easily. In addition, Contec
customized BIOS allows support to be provided at the BIOS level.
*¹ Hybrid architecture= hybrid architecture including Performance-core (P-core) and Efficient-core (E-core)
-
All New Intel® 13th Raptor Lake-S Platform
- Powered by the 13th generation Intel Core processor, our product utilizes a hybrid architecture of Performance-core (P-core) and Efficient-core (E-core) to Effectively balance workloads and enhance performance. With embedded CPUs, it ensures stable supply while maintaining excellent performance for
computing tasks and graphics.
Three types of CPU are lined up.
Intel Core i7-13700TE
Intel Core i5-13500TE

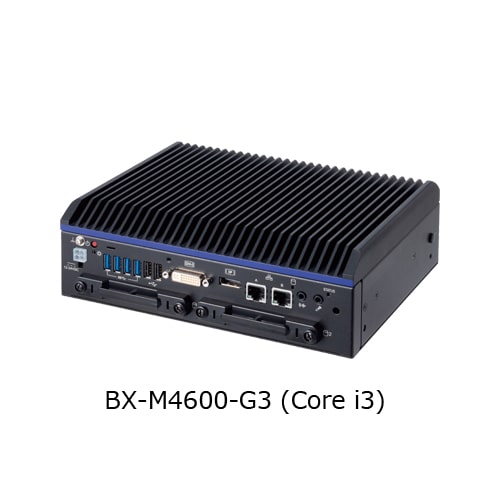

Intel Core i3-13100TE
-
CPU Built-in High-Performance Graphics
- 13th generation smart Intel Core processors feature Intel UHD Graphics 770 powered by Intel Xe Architecture 4, with up to 32 graphics execution units (EU) for fast graphics performance. Multiple video display pipelines and up to three multi-format codec (MFX) engine support video walls, digital signage and the processing of multiple video streams.
-
Adopt Removable Storage
- The front of the product features two removable 2.5-inch SATA storage structures, supporting RAID functions such as mirroring. Combined with security features like TPM locking and encryption, it meets considerations for both maintenance convenience and information security.
-
Extend Peripherals Freely Rich Interface

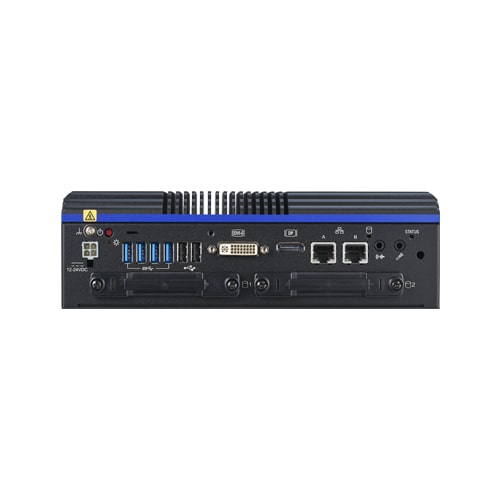

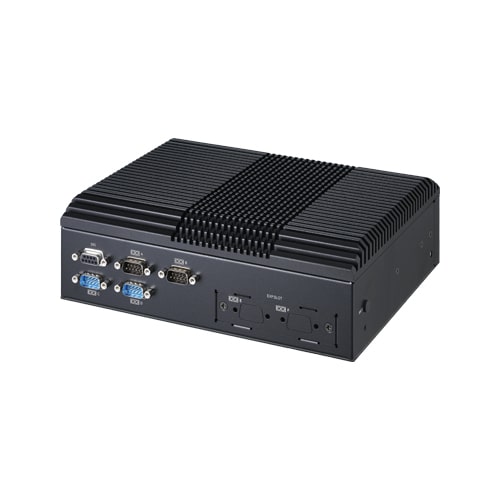

- This product is equipped with a variety of expansion interfaces such as DVI-I, DisplayPort, 2500BASE-T × 2, USB 3.2(Gen2) × 4, USB 2.0 × 2, serial (RS-232C) × 3, serial (RS-232C/422/485) × 1, GPIO × 1, audio. It has two slot-in type of 2.5-inch SATA disk slots, providing the ability to separate data from the operating system, as well as the convenience of being able to use one slot for system startup and the other for maintenance or for taking home system logs or collected data.
-
Features wide input voltage range and multiple circuit protection design
- Featuring a wide input voltage range and multiple circuit protection designs, our product line offers power input voltage ranging from 9 to 36 volts. and also, with overvoltage and overcurrent protection circuits, it also meets the requirements of application environments, tested to comply with EN61000-4-2 and EN61000-4-5
standards.
