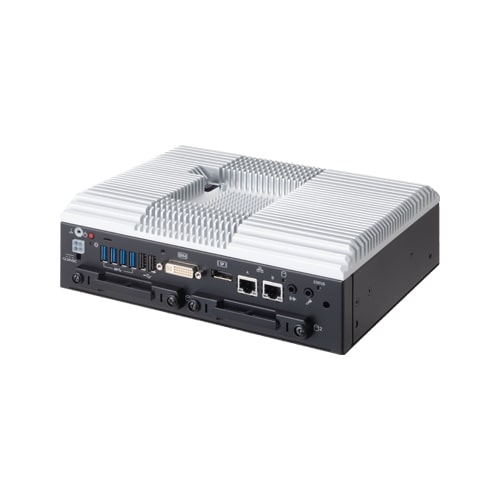

BX-S3300 盒式工控机 BX-S3300 - 无风扇嵌入式PC / Xeon E + C246 (Coffee Lake Refresh) / 2 x 2.5英寸驱动盘架 / DC电源

• 概要・特点
• 机能・规格
• 订购信息・选件
• 技术支持・下载

概要・特点

This product is a high-performance embedded-type personal computer equipped with the 9th-generation Intel® Xeon/ Core™ processor. Embedded-type chipset and CPU have been adopted. The use of readily available parts ensures the ease of the use of the product.

• Compatible with Intel 9th Coffee Lake-Refresh Platform

  • This product is equipped with the 9th generation Intel® Xeon/ Core™ processor and greatly realizes lower power consumption while ensuring fine performance of operation tasks and drawing. Adopting embedded type CPU contributes to a stable supply. Three types of CPU are lined up.
    Intel® Xeon E-2278GEL
    Intel® Core™ i7-9700TE
    Intel® Core™ i5-9500TE
    Intel® Core™ i3-9100TE
    Intel® Celeron® G4900T
• CPU Built-in High-Performance Graphics

  • Xeon, Core i3, and Celeron Models are corresponded to the Integrated Intel® HD Graphics. Full HD video can be smoothly played. It also supports full HD output of the two-screen with the DVI-I and DisplayPort.
• Adopt Removable Storage

  • The product adopts front accessible two 2.5-inch SATA storages and support RAID function such as mirroring.
• Extend Peripherals Freely Rich Interface

  • This product is equipped with a variety of expansion interfaces such as DVI-I, DisplayPort, 1000BASE-T × 2, USB 3.2(Gen2) × 4, USB 2.0 × 2, serial (RS-232C) × 3, serial (RS-232C/422/485) × 1, GPIO × 1, audio. You can assist our use in various scenes.
