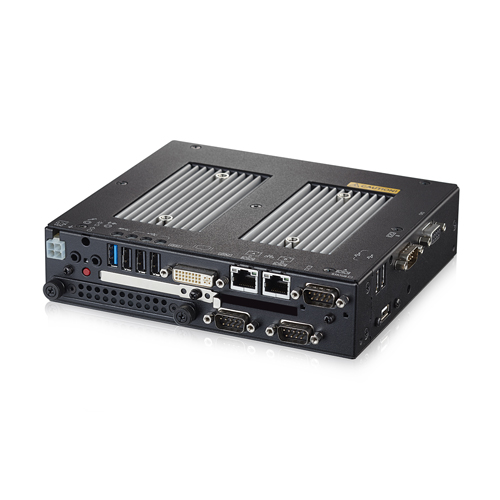

BX-S959S BX-S959SD series with fanless Atom E3845 1.91GHz Quad Core

• 概要・特点
• 机能・规格
• 订购信息・选件
• 技术支持・下载

概要・特点

This product is a fanless PC for embedded use based on an Atom processor E3845 1.91GHz Quad Core. It has sufficient performance with low power consumption, as well as small footprint of about A5-size. It has extended interfaces such as 1000BASE-T, USB3.0, and serial. It adopts CFast card for the storage and is fanless, which demonstrate the totally spindleless design that simplifies the maintenance.

• Baytrail SoC base platform
• Silent fanless design with high airtight chassis
• A5 Small design and cost effective
• Dual LAN, 4x COM, 7x USB, 1x DIO and rich expansion interface
• Easy replacement of the storage device 2.5-inch SATA drive bay
• Supports 2x CFast at BIOS selectable
