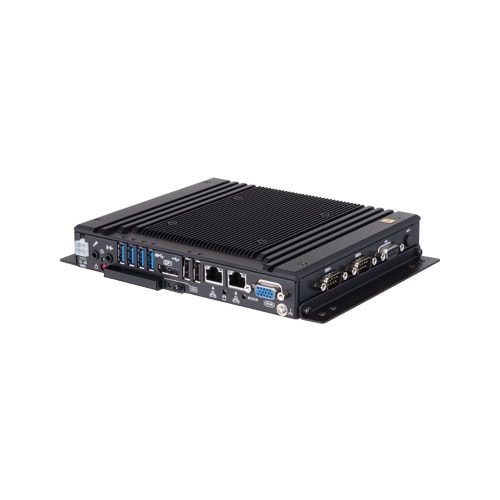

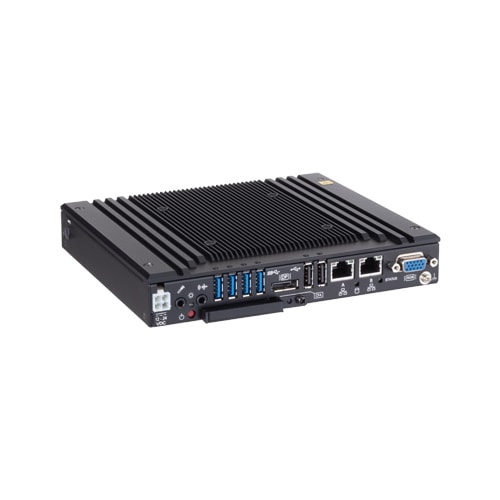

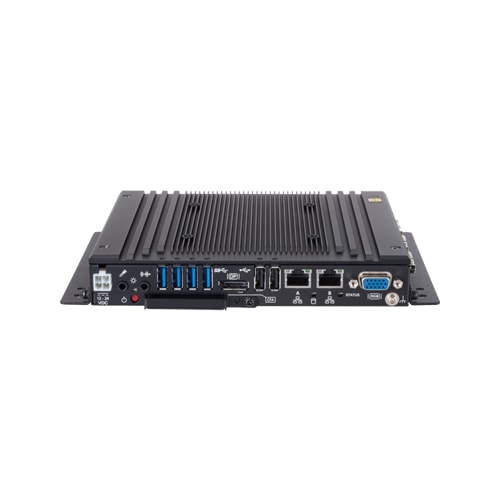

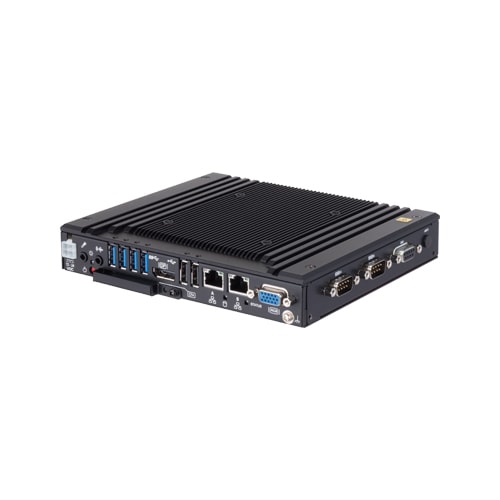

BX-T210 盒式工控机 BX-T210 - 无风扇嵌入式PC / 超薄型A5大小 / Atom x5-E3940 (Apollo Lake SoC) / DC电源

• 概要・特点
• 机能・规格
• 订购信息・选件
• 技术支持・下载

概要・特点

This product is a fan-less computer for embedded applications with an Intel Atom processor x5-E3940 (1.6GHz). It provides an ultra-compact design with a capability of operating in a wide temperature range (-20 to 70°C airflow 0.7m/s).
Addition to DisplayPort, a wide variety of interfaces including USB3.2 Gen1x4, LANx2 are provided.
Embedded-type CPU has been adopted. The use of readily available parts ensures the product to be applied easily. In addition, CONTEC-customized BIOS allows support to be provided at the BIOS level.
The product also conforms to CE marking, FCC, VCCI, CCC, and UL export and safety standards for separate export as maintenance devices.

• Extremely compact space-saving PC with an A5 paper installation area

  • The space-saving design (30.3 x 182 x 155 mm (H x W x D)) of the BX-T210 allows for installation in an area roughly the size of an A5 paper with a clearance of only 50mm.
• Supports a wide range of temperatures with operations guaranteed from -20 to 70°C

  • Operates stably over a wide range of temperatures from -20 to 70°C*1.
    • *1
      with 0.7m/s airflow
• "Power failure protection system (断电保护功能)" features power-off without OS shutdown

  • Equipped with the "Power failure protection system" function that protects data and prohibits writing to storage in the event of power failure. Along with the lockdown (disk writing suppression) function of Windows IoT Enterprise, power can be safely turned off without a shutdown process. Moreover, file system damage or data damage caused by sudden power failure can be avoided.
• High-security design contributes to a highly reliable system

  • The latest security functions such as TPM2.0 and Secure Boot, as well as CONTEC's original function including the Secure Boot USB Key are provided. This product is designed with the high security required for industrial applications in mind.
• CONTEC-customized BIOS provides useful utility

  • Useful utility of BIOS*2 customized by CONTEC is provided. The "CONTEC Fast Boot" achieves Windows startup in 10 seconds.*3 The "Disk Copy" function provides secure disk backup at the BIOS level, and also supports backup in file format or compressed file format. The "self-diagnosis (自我诊断)" function enables monitoring and diagnosis of voltage levels, temperature data, and resource information for onboard devices, SSDs, and other resources. We also offer the CONTEC tools “BIOS update tool” for updating BIOS.*4
    • *2
      For details, see "BIOS Setup" in the manual.
    • *3
      It is the actual measured value when Windows 10 and HORM function are enabled at the factory. Time may vary depending on configuration. Note that TXE, TPM, Network Stack, and SMART Self Test are not supported when the CONTEC Fast Boot is enabled.
    • *4
      Contact your retailer for more information.
• Rich variety of interfaces for easy connection to various peripheral devices

  • In addition to DisplayPort x1, USB3.2 Gen1 x4, USB2.0 x2, and LAN x2, Analog RGB port and RS-232C x2 (one port can be used as RS-422A or 485) are equipped. The CFast card slot, which is easily replaceable, is used for storage and can be used as a writing area for logs and collected data.
