概要・特点

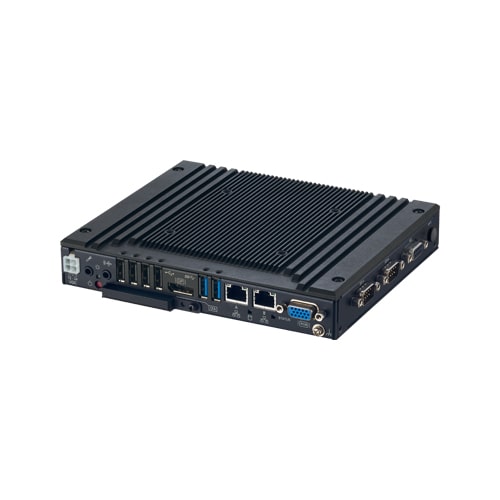

The BX-T310 product is a fan less computer designed for embedded applications, featuring an Intel Atom x-6413E processor. Its compact design and wide temperature range make it suitable for use in a variety of settings. The computer includes a DisplayPort and a range of interfaces, including dual USB 3.2 Gen1 type A ports and two 2.5GbE. It also features a built-in M.2 key E socket, which can be used to create wireless LAN and Bluetooth connections.
Thanks to its front panel CFast Type I slot extraction design that provides product maintenance convenience. The embedded CPU is designed to provide greater reliability under stricter usage conditions. The BX-T310 series, with the slim A5 size has high computing power, display capability, and various expansion slots make it well-suited for factory automation, renewable energy monitoring, digital signage, self-service kiosks, and medical applications.
適用例
工厂自动化
可再生能源监测
数字标牌终端
设施信息显示终端
-
Embedded Intel Atom® x6413E processor adopted
- This product adopts the CPU that saves power consumption and also provides high computing and graphic performances. Embedded-type CPU makes the stable supply possible.
-
Slim A5 size design reduces maintenance work
- The slim A 5 size fan less designed, 182(W) x 155(D) x 30.3(H) mm to ensure a totally spindle-less design that simplifies maintenance, relieving the concern about dust or foreign matter to get into the product. Moreover, along with minimized use of degrading parts greatly reduce maintenance work.
-
Wide range DC input and power management
- 12-24 VDC (± 10%) ; ATX /AT Mode by jumper setting, and supported Power On by Ring / Wake on LAN function (setting from BIOS).
-
Major types of peripherals are supported with rich interfaces

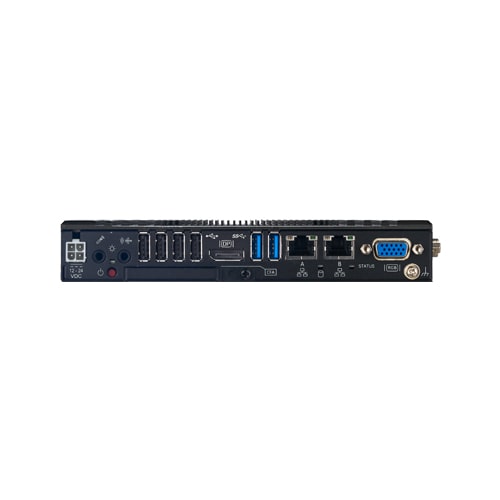

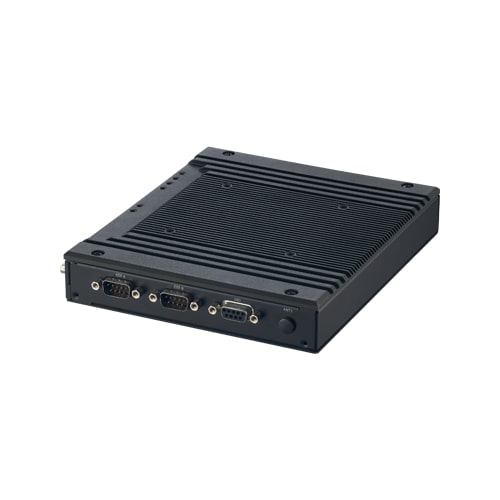

- Support for modern peripherals such as DisplayPort, VGA port, 2 x Serial ports, 2x USB 3.2, 4 x USB 2.0, M.2 key E(PCIe x2) enables fast data transfer and easy connection to external devices.
-
Dual Gigabit LAN ports and M.2 slot
-
Two sets of integrated Gigabit Ethernet ports and M.2 support for add-on Wi-Fi modules provide faster and more reliable network connectivity.
