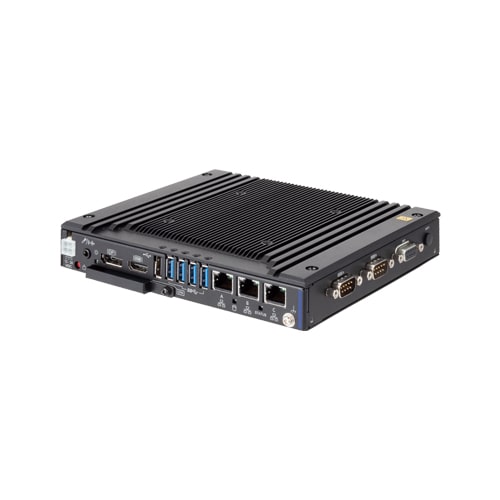

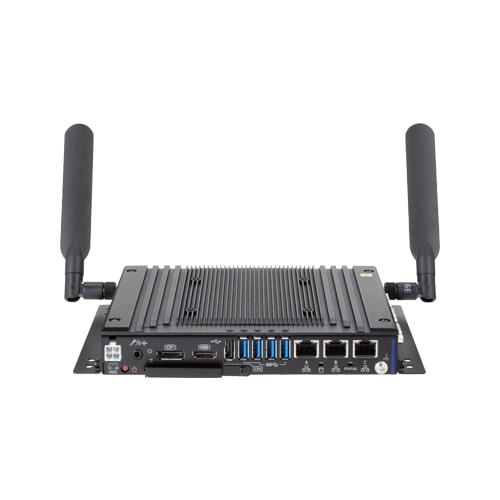

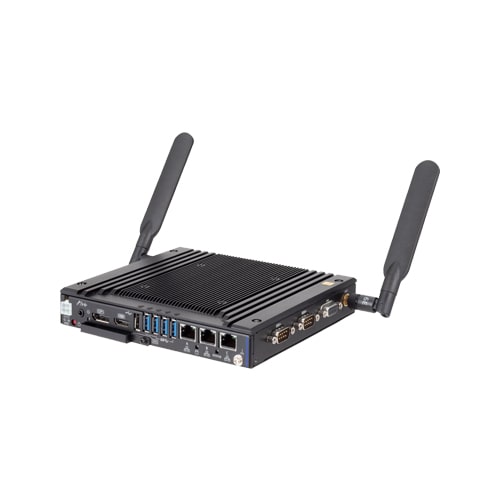

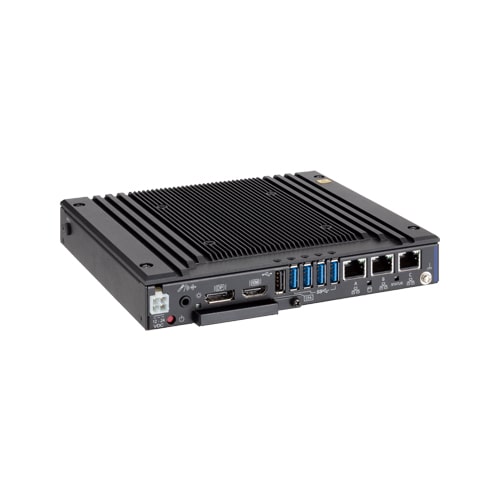

BX-T5000-G 盒式工控机 BX-T5000 - Fanless Embedded PC / Slim A5 Size / Core i5-1345URE (Raptor Lake-U) / DC Power Supply

新产品

标准保证2年
延长保证可能

13th-generation Core i5, Core i3 processor adopted
Ultra-compact design about as large as A5 size contributes to space-saving
"Power failure protection system" features power-off without OS shutdown
High-security design contributes to a highly reliable system
Fan-less design reduces maintenance work
Rich interfaces for easy connection to various peripherals

*
有关延长保修的详细信息，请与我们联系。

其他型号

Atom processor

机能・规格

机箱设计

设置方式	VESA 100 x 100; VESA 75 x 75; Desktop; Wall Mount

支持的软件

支持的操作系统	Windows 11 IoT Enterprise LTSC 2024

核心系统

CPU代数 (开发代码)	第13代(Raptor Lake-U)
处理器	Core i5-1345URE; Core i3-1315URE
CPU接口	-
内存	up to 32GB
RAS	Hardware monitor (Temperature / Voltage); Remote power-on; Watchdog timer
GPU	-
AI Performance	-
安全特性	TCG TPM 2.0; Secure Boot USB Key

外部接口

显示器	1x DisplayPort (v1.4); 1x HDMI
局域网	3x 2500BASE-T/1000BASE-T/100BASE-TX/10BASE-T
Wireless	Wireless LAN IEEE802.11ax/ac/a/b/g/n
音频	1x Line out; 1x Mic-in
输入/输出	4x USB3.2 Gen2 (USB3.1); 1x USB2.0; 1x RS-232C; 1x RS-232C/422A/485
存储卡	1x CFast slot

扩展插槽

扩展总线	1x M.2 Key E (2230); 1x M.2 Key M (2242)
驱动器插槽	-

电源

输入电压	12 to 24VDC

设置环境

工作温度	-20 to 45°C; -20 to 55°C (-4 to 131°F) w/ 0.7m/s airflow
储存温度	-20 to 60°C (-4 to 140°F)
认证标准/规格	CE; FCC Class A; UKCA; VCCI Class A
