BX-U310-J 盒式工控机 BX-U310 - 无风扇嵌入式PC / 超小型设计 / Atom x6413E

• 概要・特点
• 机能・规格
• 订购信息・选件
• 技术支持・下载

概要・特点

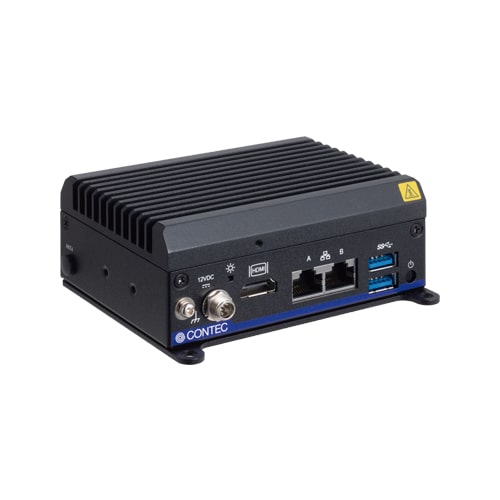

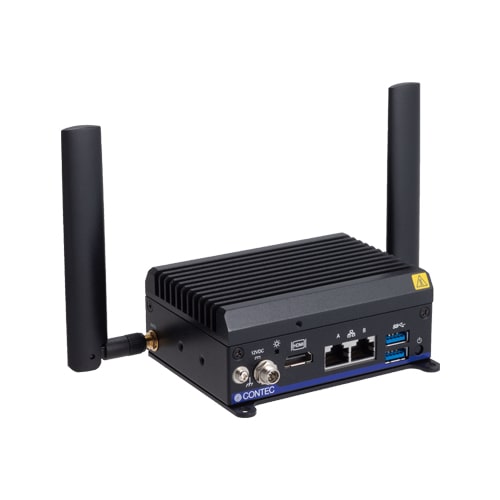

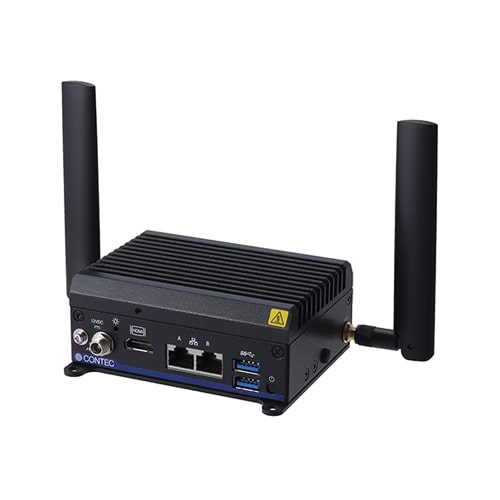

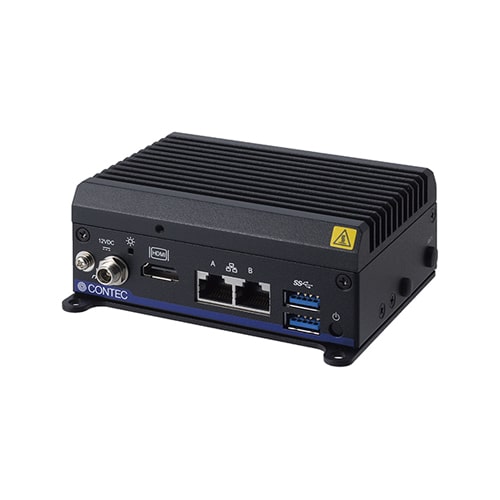

This product is a fanless computer for embedded applications with an Intel Atom processor x6413E (1.5GHz). The product delivers both an ultra-compact design and performance in a wide temperature range (−10°C to 60°C with an airflow of 0.7 m/s).

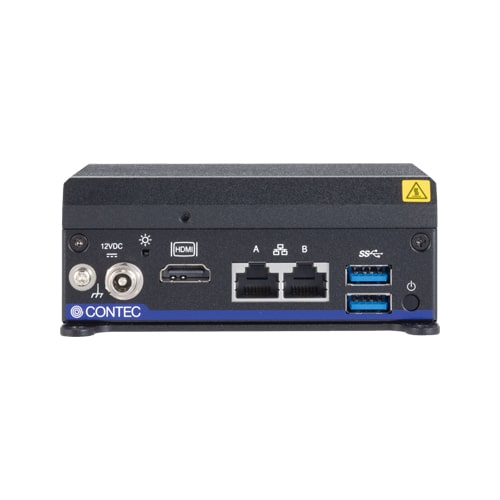

Addition to HDMI, a wide variety of interfaces including USB 3.2 Gen2 (USB3.1) x 2 and LAN x 2 are provided.
Embedded-type CPU has been adopted. The use of readily available parts ensures the product to be applied easily. In addition, CONTEC-customized BIOS allows support to be provided at the BIOS level.

• Palm-sized ultra-compact PC

  • At just 110 (W) × 80 (D) × 45 (H) mm, this ultra-compact PC is small enough to fit in the palm of your hand. This product assists customers in miniaturizing their equipment without compromising design.
• Operation capable in a wide temperature range -10 to 60°C (14 to 140°F)

  • Achieves stable operation in a wide temperature range of -10 to 60°C (14 to 140°F). *1
    *1 Derating conditions exist.
• "Power failure protection system" features power-off without OS shutdown

  • Equipped with the "Power failure protection system" function that protects data and prohibits writing to storage in the event of power failure.*2 Along with the lockdown (disk writing suppression) function of Windows IoT Enterprise, power can be safely turned off without a shutdown process. Moreover, file system damage or data damage caused by sudden power failure can be avoided.
    *2 The Power Failure Protection system function is only supported by models equipped with M.2 SSD.
• High-security design contributes to a highly reliable system

  • The latest security functions such as TPM2.0 and Secure Boot, as well as CONTEC's original functions including the USB Boot Protect are provided. This product is designed with the high security required for industrial applications in mind.
• CONTEC-customized BIOS provides useful utility

  • Useful utility of BIOS *3 customized by CONTEC is provided. The "Disk Copy" function provides secure disk backup at the BIOS level, and also supports backup in file format or compressed file format. We also offer the CONTEC tools “BIOS update tool” for updating BIOS.*4
    *3 For details, see each setting in the [BIOS Setup] section. *4 Contact your retailer for more information。
• Helps reduce running costs and energy consumption

  • This product uses the x6413E low power consumption Intel Atom processor platform to achieve low power consumption while still providing sufficient performance.
