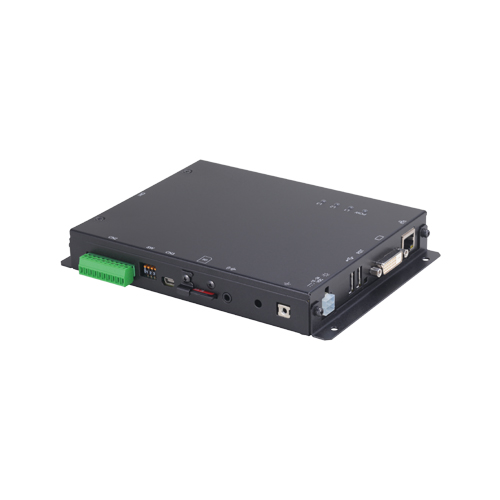

MC-310B-DC355 微型控制器 MC-310 - Linux Box / ARM 600MHz / DC电源

• 概要・特点
• 机能・规格
• 订购信息・选件
• 技术支持・下载

概要・特点

This product is an industrial use, multi controller with diverse uses. It contains a 600 MHz ARM processor(T.I. Cortex-A8) and 256 MB of DDR2 SDRAM, and is a platform for the execution of open source applications. In addition, this product makes use of SD cards, which have excellent cost performance, and it also supports high-speed and high-capacity SDHC cards as the startup device. It is equipped with a variety of extension I/O features such as those for display output, analog input, digital I/O, audio output, LAN, USB2.0, etc. This product is the best choice for applications which require a greater space-saving and power-saving controller than the PC.

• • It is a powerful general-purpose execution platform for open source applications equipped with SoC 'AM3517' that incorporates a 600MHz ARM processor (T.I. Cortex-A8) and system memory of 256MB.
• • With Linux OS (Kernel 2.6), it allows users to freely develop applications for diversified fields using vast amounts of open source resources.
• • The product is equipped with an array of extension I/Os including display out, 4-channel analog input (AI), digital I/O (DIO) of 4 inputs and outputs each, audio output, LAN, and USB2.0.
