概要・特点

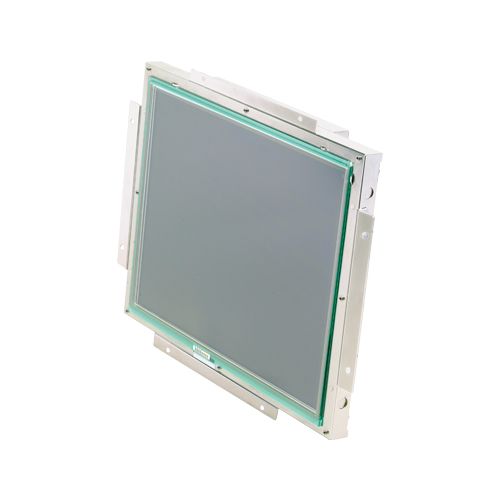

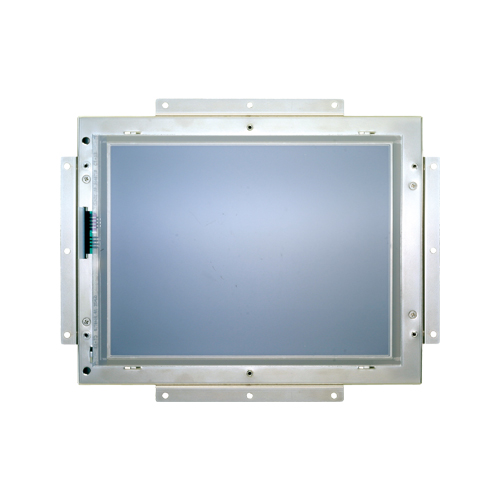

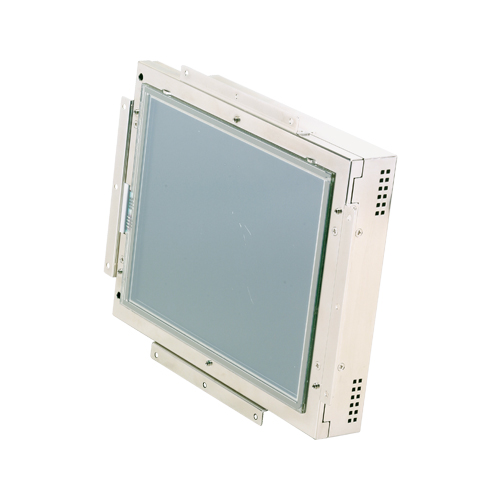

These products are two inputs (LVDS or DVI-D sign) compatible, embedded type (open-framed), TFT LCD display unit for use with host computers such as the CONTEC IPC series and SBCs (single board computers). Touch panel is available via RS-232C (Built-in video cable) or USB connection. Because It is compatible with product IPC-DT60(Embedded model 65) series and panel installation conventionally, substitution is possible.
-
- LVDS and DVI-D inputs, that are less affected by the interference of noise, are supported for host computer connection. Because of the digital signal input, up to 5 m of cable length is available. The video signal and touch panel signal can be connected with one cable depending on the host PC to be connected. Full-bright, wide-angle-of-visibility type of liquid crystals capable of displaying up to 16,777,216 colors on the 15 inches and 262,144 colors on the 12.1 inches.
-
- These products have analog touch panel enabling mouse emulation using driver software. Touch panel is available via RS-232C (Built-in video cable) or USB connection.
-
- Because It is compatible with product IPC-DT60(Embedded model 65) series and panel installation conventionally, substitution is possible.
-
- Attaching the panel with a waterprotection packing, the front side can be meet the IP65-rated drip-protection specification.
-
- An optional AC adapter (IPC-ACAP12-02) and connection cable is available to run the display from the AC power supply and to use for connection to the host computer.
