概要・特点

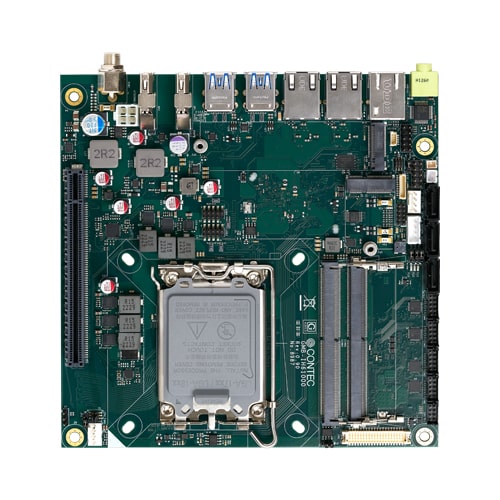

This product is a Mini-ITX form factor industrial mainboard which based on Intel 12th / 13th Gen Core Processors CPU in LGA1700 socket technology with energy efficient architecture. GMB-IH61000 adopts two DDR5 SO-DIMM sockets and supports up to 64GB memory. The low-profile SKU solutions are suitable for factory automation applications. Moreover, with the high performance and high-end specifications and build-in TPM for security application, GMB-IH61000 is our first New platform architecture on Mini-ITX product line.

• Intel 12th / 13th Alder Lake-S / Raptor Lake-S Platform

  • This product is equipped with the 12th / 13th generation Intel Core, Celeron & Pentium processors. Adopting embedded-type CPU contributes to a stable supply. Following CPUs are recommended for customer reference.
    Intel Pentium & Celeron SKU
    Intel Core i9 / i7 / i5 /i3, 35/ 65W TDP SKU.
• Multi Display Supported

  • Dual Display port support 4K independent displays, One LVDS Connector resolution up to 1920x1080, faster in performance with enhanced Intel graphics engine Intel UHD Graphics 770/730/710 support by processor SKU.
• Triple Gigabit Ethernet

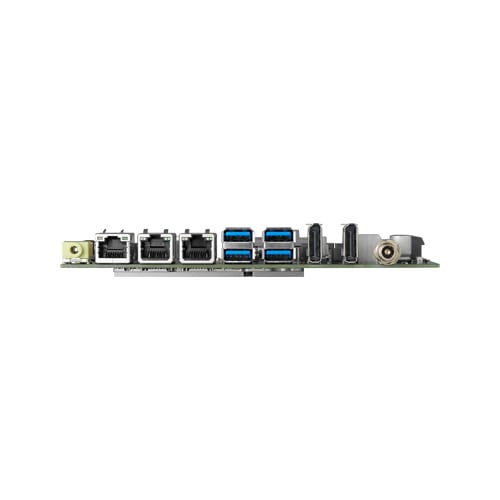

  • The product has 3 x RJ45 connectors on rear I/O for customer usage, which are 1 x Intel i219LM + 2 x Intel iI225 PCIe chip.
• Extend Peripherals Freely Rich Interface

  • This product is equipped with a variety of interfaces such as serial port, USB 3.2/ 2.0, 8-bit GPIO, audio jack, Line-out, M.2 Key E/ Key M, etc. For customers with various needs.
• Build-In TPM2.0

  • The TPM(Trusted Platform Module) provides tools to securely generate keys, and it also includes features such as remote authentication and sealed storage.
