概要・特点

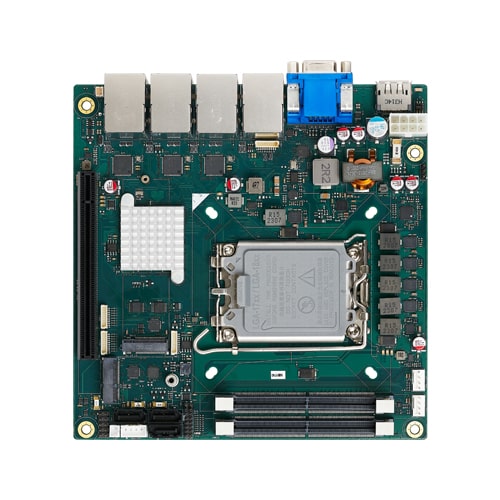

This product is a Mini-ITX form factor industrial mainboard which based on Intel® 12th / 13th / 14th Gen Core™ Processors CPU in LGA1700 socket technology with energy efficient architecture. GMB-IQ67010 adopts two DDR5 SO-DIMM sockets and supports up to 64GB memory.
The low-profile SKU solutions are suitable for factory automation applications. Moreover, with the high performance and high-end specifications, GMB-IQ67010 is our first new platform architecture on Mini-ITX product line.
-
Intel® 12th/ 13th/ 14th Alder Lake / Raptor Lake / Bartlett Lake-S Platform
- This product is equipped with the 12th / 13th / 14th generation Intel® Core, Pentium® & Celeron® processors.
Adopting embedded-type CPU contributes to a stable supply.
The following CPUs are recommended for customer reference.
Intel® Pentium® & Celeron® T/TE SKU
Intel® Core™ i7 / i5 /i3 supports 35/ 65W TDP SKU
-
Multi Display Supported
- Dual Display port support 4K independent displays
One VGA Connector resolution up to 1920x1080
faster in performance with enhanced Intel® graphics engine
Intel® UHD Graphics 770/730/710 support by processor SKU
-
Quad Gigabit Ethernet

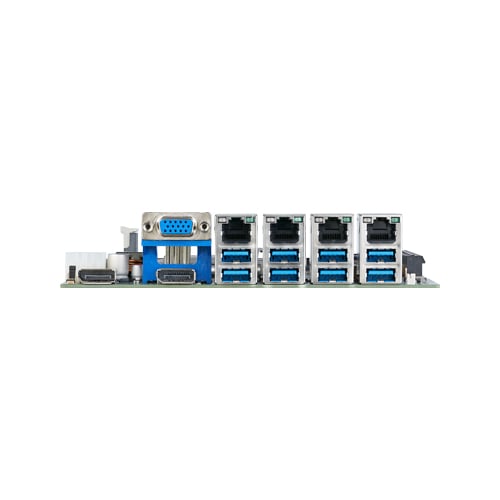

- The product has 4x RJ45 connectors on rear I/O for customer usage, which are 1 x Intel® I219-LM + 3 x Intel® I210-AT PCIe chip.
-
Extend Peripherals Freely Rich Interface
- This product is equipped with a variety of interfaces such as serial port, USB 3.2/ 2.0, 8-bit GPIO, audio jack, Line-out, M.2 Key E/ Key M, etc. For customers with various needs.
