概要・特点

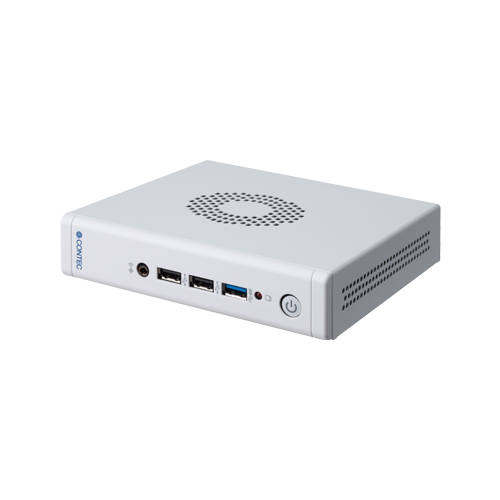

This product is a PC equipped with an Intel® Core™ Ultra 5 processor 125U designed for embedding. The product includes varied interfaces such as HDMI, two 1000BASE-T ports, three USB 3.2 Gen 2(USB 3.1), two USB 2.0 and USB Type-C. Embedded-type CPU has been adopted. The use of readily available parts ensures the product to be applied easily. In addition, CONTEC-customized BIOS allows support to be provided at the BIOS level. The chassis has a thin, compact design, and the optional VESA mounting bracket can be used to mount the product to the back of a monitor.

• Uses Intel® Core® Ultra 5 processor 125U

  • The LPC-500 series is equipped with a Meteor Lake-U CPU that provides advanced computing and graphical performance even with minimal power requirements. Reliable supply is ensured by the adoption of embedded CPUs.
• "Power failure protection system" features power-off without OS shutdown

  • Equipped with the "Power failure protection system" function that protects data and prohibits writing to storage in the event of power failure. Along with the lockdown (disk writing suppression) function of Windows 11 IoT Enterprise, power can be safely turned off without a shutdown process. Moreover, file system damage or data damage caused by sudden power failure can be avoided.
• High-security design contributes to a highly reliable system

  • The latest security functions such as TPM2.0 and Secure Boot, as well as CONTEC's original functions including the USB Boot Protect are provided. This product is designed with the high security required for industrial applications in mind.
• Rich variety of interfaces to expand your peripherals freely

  • Interfaces including HDMI, 1000BASE-T x 2, USB 3.2 Gen2(USB 3.1) x 3, USB 2.0 x 2 and USB Type-C x 1 are provided.
• Thin, compact design enables mounting to the rear of a monitor

  • The optional mounting bracket can be used to mount the product to the back of a monitor with VESA standard support.
• Compatible with Trellix allow listing anti-virus software

  • Some OS pre-installed types have been also installed a Trellix (Former McAfee) allow listing software. The allowlist type is a security countermeasure that registers in advance the list of programs and codes that are permitted to execute and blocks execution of unregistered programs and codes. It prevents malicious program execution and protects embedded PC from zero day malware attacks. It is effective for attacks aimed at vulnerabilities before (zero day) when countermeasures and modification programs are offered.
