MR4300 工控机 MR4300 - 机架式 13th Gen. Intel Core (Raptor Lake) / 1x PCIe(x16)or 2x PCIe(x8) / 3x PCIe(x4) / 2x PCI

• 概要・特点
• 机能・规格
• 订购信息・选件
• 技术支持・下载

概要・特点

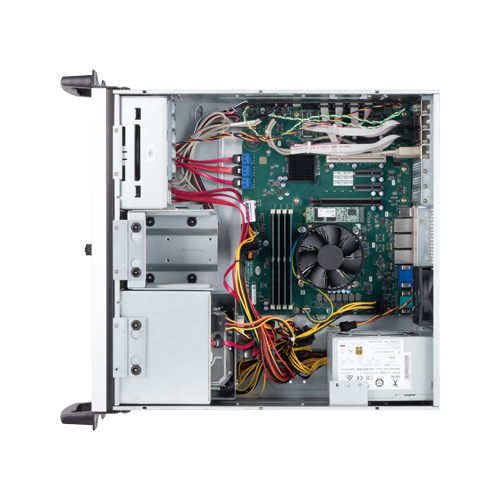

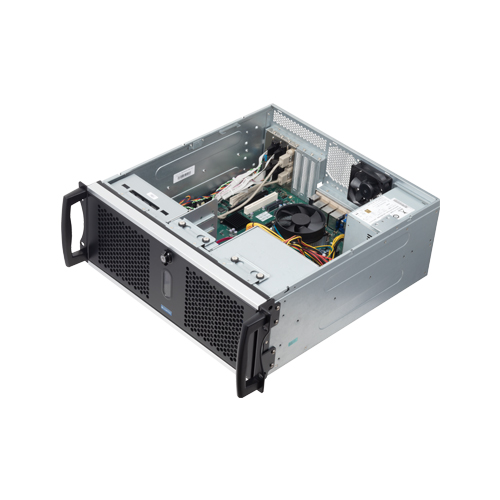

This product is a 19-inch rack-mount industrial-use PC that supports the 13th (Raptor Lake) of Intel® Core ™ series and contains the Q670E chipset. In addition to a wide range of interfaces, expansion slots of PCI bus x 2, PCI Express Gen5(x16) bus x 1, or PCI Express Gen5(x8) x 2, PCI Express Gen4(x4) x 2, PCI Express Gen3(x4) x 1 bus are equipped. A reliable, Japan-made power supply can be selected. A power supply equipped with a nickel metal hydride battery, for optimal countermeasures against momentary and prolonged power outages are also available. Solution-ePC is an industrial-use computer that offers BTO (Build to Order) specifications to suit the requests of customers. Only carefully selected components offering high reliability and stable supply are used, making the product suitable for industrial use.

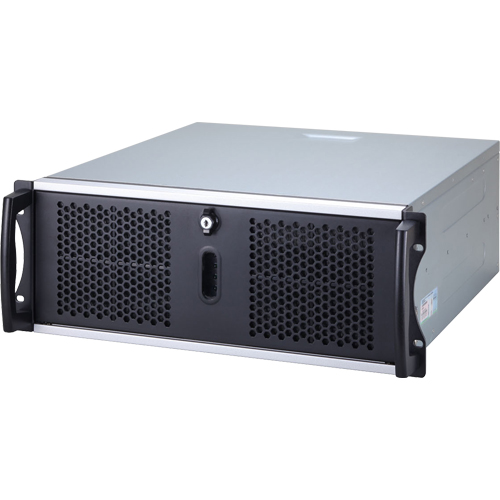

• High-power, 4U rack-mounted PC

  • This product is an EIA 19 rack-mounted (4U) industrial computer compatible with 13th generation Intel® Core™ processors (Raptor Lake). It is ideal for fields requiring advanced multiprocessing such as semiconductor manufacturing equipment, inspection equipment, social infrastructure, and medical equipment.

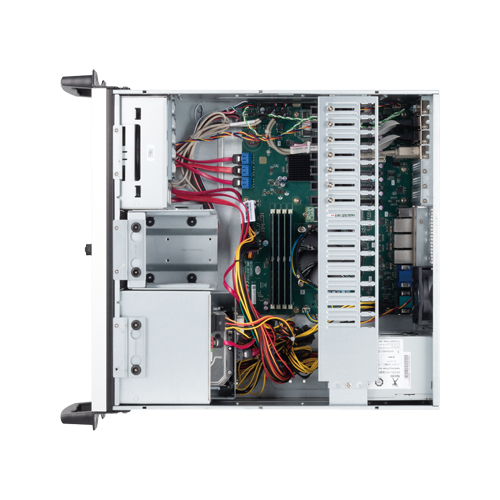

• Can house up to seven function expansion cards

  • This product is equipped with one PCI Express Gen(x16) ^*, two PCI Express Gen4(x4), one PCI Express Gen3(x4) and two PCI slots. It can house the signal input and output required for measurement control systems as well as multiple expansion interface cards required for AI/ML workloads and machine vision.
    • *
      You can use a jumper to switch the PCI Express Gen5(x16) slot to a PCI Express Gen5(x8) slot.
• Equipped with various expansion interfaces

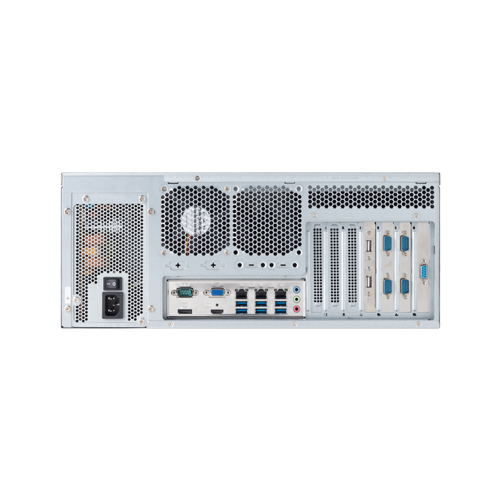

  • This product is equipped with various expansion interfaces including two 2.5GBASE-T, one 1000BASE-T, six USB 3.2 Gen2 (USB 3.1), two USB 2.0, five COM communication ports, and video output ports (Display Port, HDMI and VGA)
• Supports Windows 11 IoT Enterprise 2024 LTSC multiple languages

  • Windows 11 IoT Enterprise LTSC 2024, an OS designed for specific applications, can be selected in one of four languages: English, Japanese, Chinese, and Korean. This OS can be used as a long-term fixed version with no function updates. The built-in lockdown function allows users to limit writing to storage.
