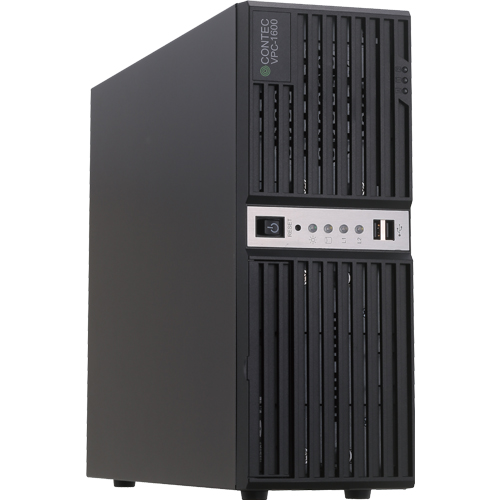

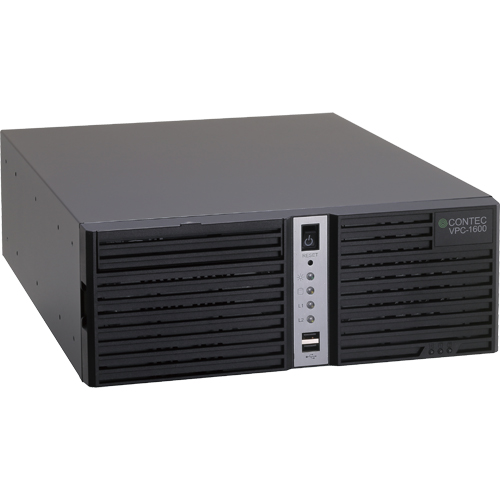

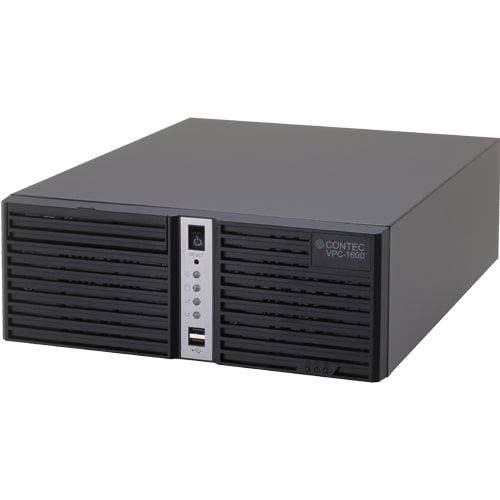

VPC-1600 工控机 VPC-1600 - 薄塔式 / Core i + Q87 (Haswell) / 3x PCI

停产商品

标准保修3年
延长保修可能

修理承接期限 : 2026/09/30

览推荐替代产品

※即使在期间内，也会有不能接受修复．

Equipped with a low power consumption CPU
Intel(R) Q87 Chipset is adopted
Correspond to mirroring (RAID1)
Supports high-speed high-capacity memory

*
有关延长保修的详细信息，请与我们联系。
*
This product is sold with the CE marking as a declaration of compliance with the European Directive. However, the related Low Voltage Directive EN 60950-1 will be forcibly expired on 20 December, 2020, and you will not be able to sell to Europe from that date onwards.

机能・规格

机箱设计

设置方式	Desktop

支持的软件

支持的操作系统	Windows 10 IoT Enterprise LTSB 2016 64-bit; Windows 7 Ultimate (FES) 32-bit; Windows 7 Professional (FES) 64-bit; Windows 7 Professional (FES) 32-bit; Windows Embedded 8.1 Industry Pro 64-bit

核心系统

处理器	Core i5-4570TE; Celeron G1820TE
CPU代数 (开发代码)
CPU接口
内存	16GB; 8GB; 4GB
RAS	Hardware monitor (Fan speed / Temperature / Voltage); Remote power-on; Remote reset; Watchdog timer
GPU
AI Performance
安全特性	-

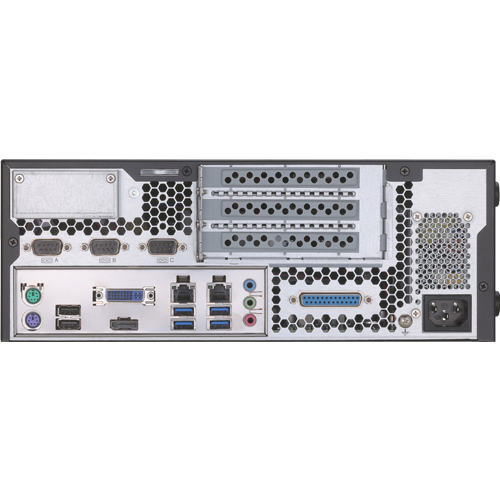

外部接口

显示器	1x DisplayPort; 1x DVI-I
局域网	2x 1000BASE-T
Wireless
音频	1x Line out; 1x Line in; 1x Mic-in
输入/输出	4x USB3.2 Gen1 (USB3.0); 4x USB2.0; 4x RS-232C; 1x LPT; 2x PS/2
存储卡	-

扩展插槽

扩展总线	3x PCI

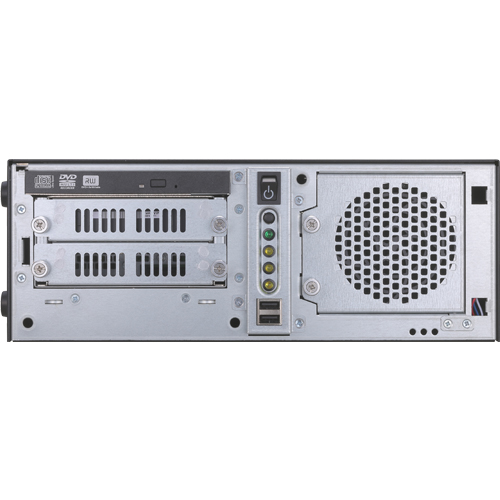

驱动器插槽	2x 3.5-inch bay (SATA)

电源

输入电压	100 to 240VAC

设置环境

工作温度	5 to 40°C (41 to 104°F)
储存温度	-20 to 60°C (-4 to 140°F)
认证标准/规格
