PT-955 触摸屏一体机 PT-955 - 触摸屏PC / 面板安装式 / 12.1-inch LCD / 15-inch LCD / Atom N270 + 945GSE / DC电源

• 概要・特点
• 机能・规格
• 订购信息・选件
• 技术支持・下载

概要・特点

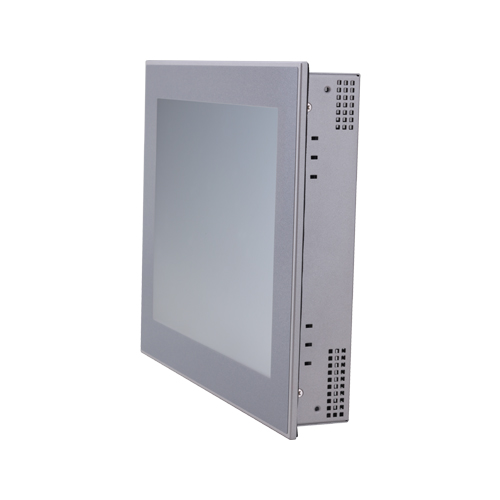

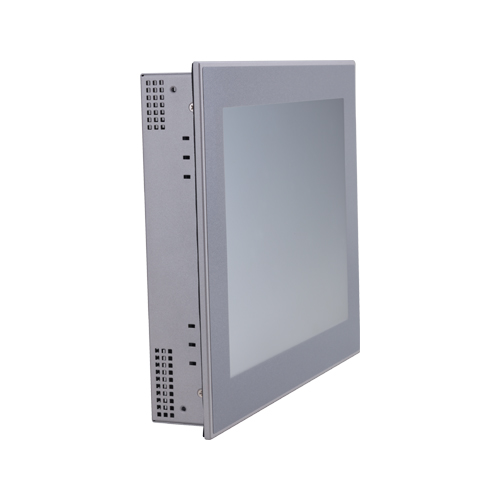

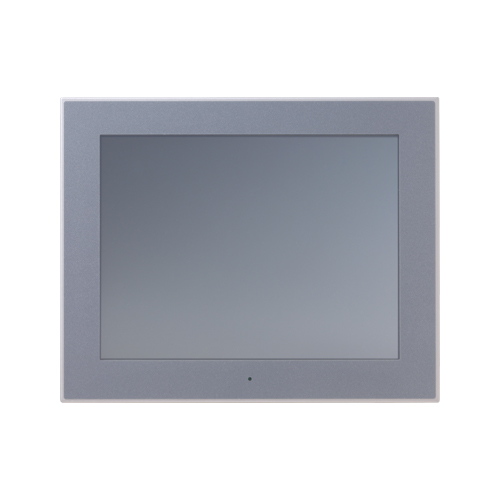

PT955 series is the fanless Panel Computer which is built on Atom N270 and 945GSE (GMA950 incorporated) chipset. The `resource-saving PC` contributes to minimizing needed power and space for HMIs as operator interface of equipment in production line and KIOSK terminal, reducing running cost and promoting energy efficiency. It also has variety of interfaces such as 2 x 1000BASE-T, 4 x USB2.0 and 2 x serial. Adopted embedded-type CPU and chipset ensure availability and ease of the use of this product. In addition, included fittings and clamps prevent accidental unplugging of CF cards and USB cables.

• • Contributes to reduced running cost and promotes energy efficiency LED backlight and power saving Atom processor reduce power consumption.
• • slim design minimizes required installation space. Slit-less, spindle-less and fan-less design reduce maintenance.
• • High definition and DVI external display output Enables dual monitor with external display connected to DVI port which supports up to full HD (1920 x 1080 pixels).
• • Easy and secured peripheral connectivity Features variety of interfaces, 4 x USB2.0, 2 x RS232C, 2 x Giga LAN and twin CF card slots. Metal fitting and clamps provided to prevent accidental cable disconnection.
• • Highly reliable designed for embedded applications. Supports a wide range of power supplies from 10.8 to 31.2VDC. Touch panel enables system operation without keyboard and mouse.
