概要・特点

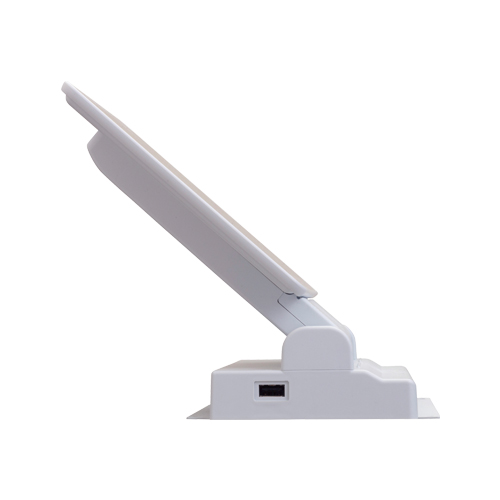

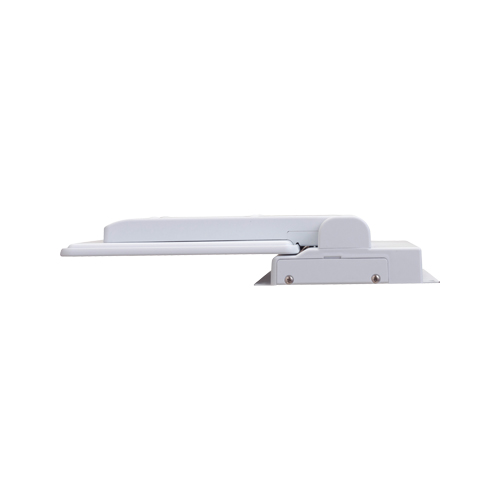

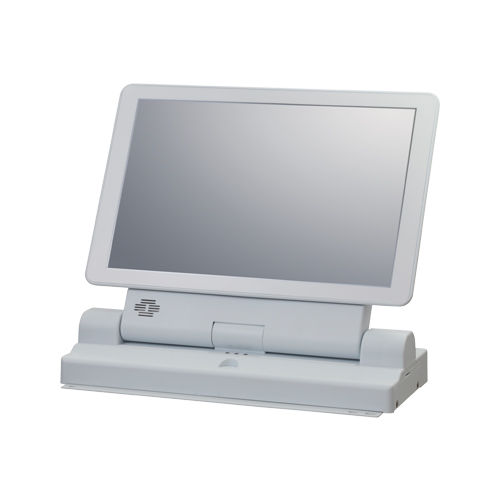

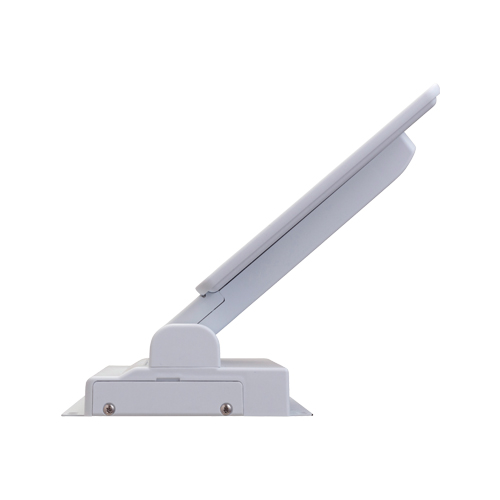

This product is a liquid crystal integrated all-in-one computer, equipped with a 10.1-inch (WXGA 1280 × 800) touch screen display (capacitive type). This product is equipped with a built-in UPS battery that can operate for 5 minutes or more in the case of power failure such as a power outage and momentary blackout, contributing to improved system stability and reliability by being able to automatically shut down the OS using the included utility software. Additionally, the angle of the display can be adjusted, and if pressed forward 90° the display can be closed completely, much like a laptop computer. In addition to desktop mounting using rubber feet (included), the product can be screwed to a device, fixing it like an embedded computer. It can be used for a wide range of applications, including as a control panel for medical devices or test equipment instead of a PC, or as a desk-mounted touch-type reception or authentication terminal.

Usage Examples

• Installable computer with desktop-type touch panel

  • A panel computer equipped with a 10.1-inch (WXGA 1280 × 800) touch panel display that can either be mounted on a desktop using rubber feet (included) or screwed to a device, fixing it like an embedded computer. The angle of the display can be adjusted, and it is possible to close the display like a laptop computer by pressing forward 90°.
• Safe even if power is interrupted. UPS backup power supply, OS automatic shutdown function

  • A backup power supply (nickel-metal hydride secondary battery) is built-in to the computer, protecting the system from sudden shutdown caused by unintended power interruption such as a power outage and momentary blackout. OS automatic shutdown utility software is also included.
• Abundant expansion interface matched with device incorporation

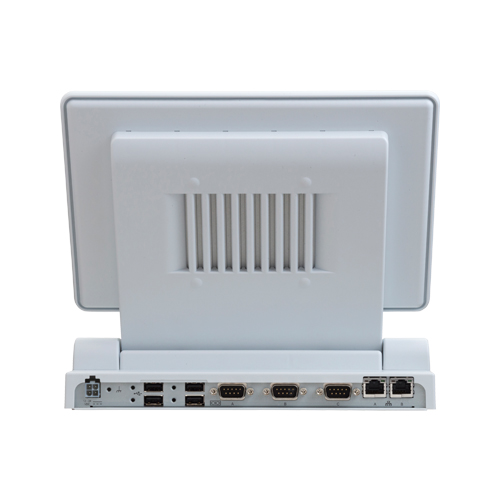

  • Equipped with an abundant interface, including USB2.0 × 5, LAN × 2, and COM (RS-232C) × 3. Peripheral equipment for professional use, such as barcode readers or thermal printers, can be connected directly. Storage can also be easily exchanged from the side.
• Electrostatic touch panel adopted

  • It is tuned to be operatable by wearing rubber gloves, so there is no problem when gloves are used where necessary.
• Remote power management function to reduce operation tasks

  • There is no need to worry about the intrusion of dust or foreign objects, and the use of parts that degrade over time is minimized to facilitate maintenance.
