PT-V15WB-200 触摸屏一体机 PT-V15WB-200 - 触摸屏PC / VESA安装 / 15.6-inch LCD, PCAP触屏 / Atom E3940 (Apollo Lake SoC) / DC电源

• 概要・特点
• 机能・规格
• 订购信息・选件
• 技术支持・下载

概要・特点

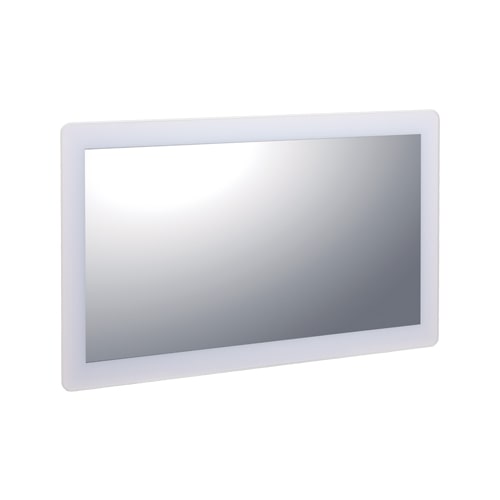

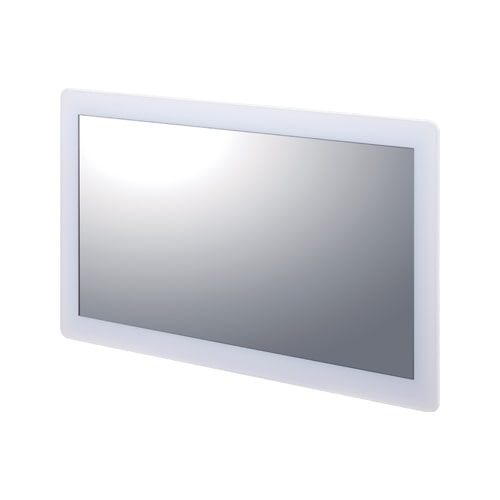

This product is the “All-in-One” type PC, which has a 15.6-inch size (Full-HD 1920×1080) LCD touch screen integrated.
Since only selected interfaces such as 1000BASE-T, USB 3.2 Gen1 (USB3.0), and Audio are provided, the product can be installed in a smaller space comparing to our earlier panel integrated computers.
Embedded-type CPU has been adopted. The use of readily available parts ensures the product to be applied easily. In addition, the use of CONTEC-customized BIOS allows support to be provided at the BIOS level. In addition, Contec's unique functions : "断电保护", "CONTEC Fast Boot", “Secure Boot USB Key”, "Disk Copy", "Self-diagnosis (自我诊断)" are available.

• Uses a capacitive (PCAP) touch panel for smooth touch operation

  • A capacitive (PCAP) touch panel is used to support up to 10 points of multi-touch, achieving a beautiful screen display and a smooth operation feeling. Has excellent scratch resistance and transparency.
• The compact design features flexibility in installation

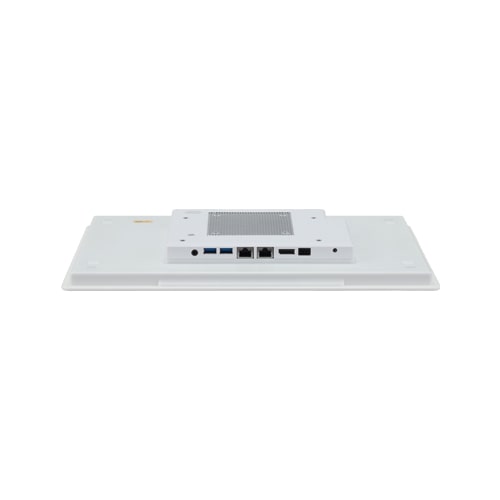

  • With minimum interfaces such as USB3.2 Gen1 (USB3.0) x 3, LAN x 2, Audio x 1, and DisplayPort x 1 the compact size PC, (389.2(W)×245.3(H)×38.7(D), features flexibility in installation.
• Both DC input connectors, a jack type and a terminal block type are quipped with the unit for optimized use

  • In addition to the DC jack for connecting the optional AC adapter (PWA-60AWD2), terminal block to connect directly with DC power from equipment or machine is also equipped.
• Fan-less design that reduces maintenance and inspection work

  • This product's spindle-less design eliminates CPU fan, and relieves the concern about dust or foreign matter to get into the product. The using parts that degrade over time is minimized to facilitate maintenance.
• VESA standard support

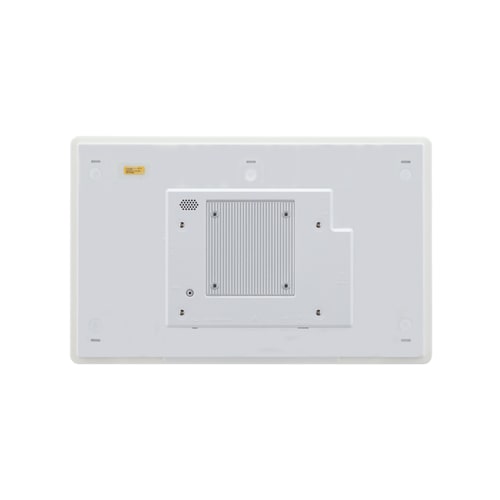

  • Conforming to the VESA standard (75×75), the product can be set on the various types of arms or stands.
• "Power failure protection system (断电保护功能)" features power-off without OS shutdown

  • Equipped with the "Power failure protection system" function that protects data and prohibits writing to storage in the event of power failure. Along with the lockdown (disk writing suppression) function of Windows IoT Enterprise, power can be safely turned off without a shutdown process. Moreover, file system damage or data damage caused by sudden power failure can be avoided.
