概要・特点

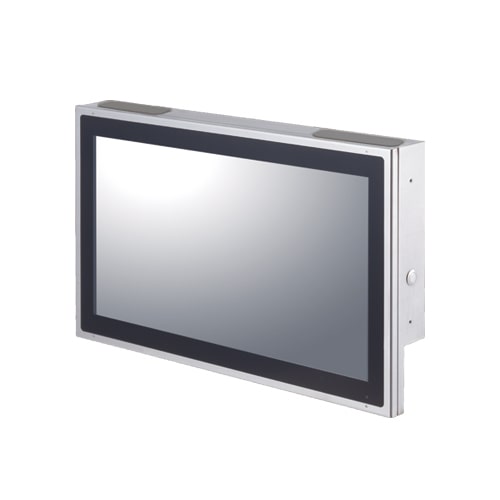

This product is a fanless touch panel computer equipped with an Intel Atom E3940 quad-core CPU along with an 18.5-inch projected capacitive touch panel.
By using stainless steel (SUS430) for the entirety of the casing, the product has greater durability and resistance to rust, making it ideal for implementation in systems and devices used in sanitation-conscious environments such as food processing facilities. Additionally, the entire casing is IPX2 drip-proof, and the front part is IP65-compliant (dust- and drip-proof). This makes it suitable for installation in places where water is handled, such as in the food, fishery, pharmaceutical, and sheet metal processing industries, as well as making it easy to clean.
The product is equipped with a variety of expansion interfaces such as 1000BASE-T, USB 3.2 Gen 1 (USB 3.0), a DisplayPort, analog RGB, and a serial port. In addition, Contec's unique function : “Secure Boot USB Key” are available.

• IPX2 drip-proof structure for the entire casing and IP65 dust- and drip-proof structure for the front section

  • The structure of the entire casing meets the standards of IPX2 (for withstanding water droplets) while the front part structure meets the IP65 standards (for withstanding dust and running water).
• Uses a stainless steel casing that resists rust

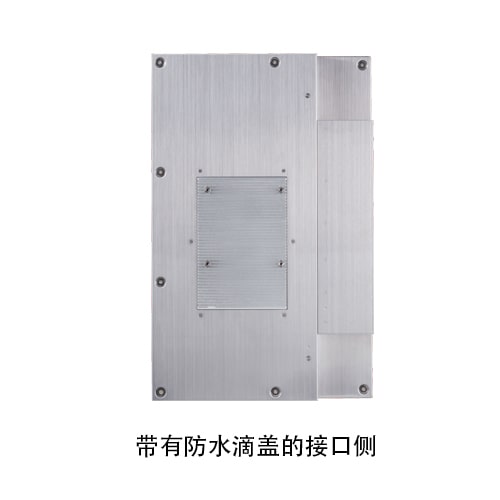

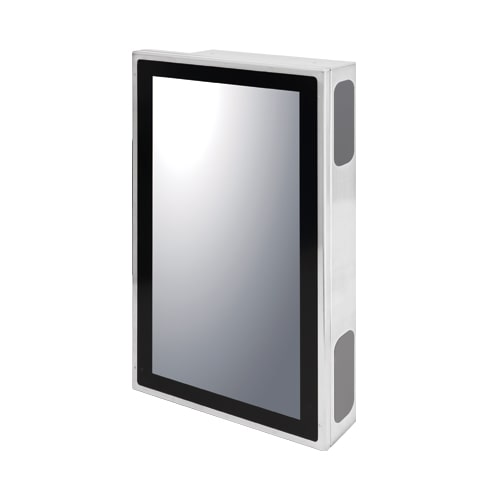

  • The product has a casing of stainless steel (SUS430) that is resistant to rust, and a drip-proof cover that protects the interface from water droplets is attached. Not just horizontal installation—if you install it with a vertical orientation, it is optimal for clearly displaying written instructions in vertically-aligned A4 format on the full screen.
• Uses a projected capacitive (PCAP) touch panel that can be used even while wearing gloves

  • The touch panel is designed to prevent incorrect detections during water droplet adhesion, and operation is possible even when wearing rubber gloves: these features allow it to be used in areas experiencing water damage. The surface also has anti-glare film attached, reducing the amount of glare from lighting and the like.
• Power Failure Protection system (断电保护功能) for reliable operation with no OS shutdown required

  • The Power Failure Protection function protects data and prohibits writing to storage in the event of a power failure. When used together with the Windows IoT Enterprise lockdown (disk write suppression) feature, power can be safely turned off even without performing a shutdown process. This also helps prevent corruption of the file system and data due to sudden power loss.
• Convenient utilities based on CONTEC’s originally designed BIOS

  • The product is equipped with utilities*1 based on CONTEC’s original and convenient BIOS. With CONTEC Fast Boot, it is now possible to start up Windows in just 10 seconds.*2 With the Disk Copy function, it is possible to perform disk backup on the BIOS level safely, and it supports backup as either the same file type or a compressed file type. The Self-diagnosis (自我诊断) function enables monitoring and diagnosis of voltage levels, temperature data, and resource information for onboard devices, SSDs, and other resources. It also comes with a BIOS Update Tool*3 for updating BIOS.
    • *1
      For details, please see “BIOS Setup” in the Reference Manual.
    • *2
      The actual measured value with Windows 10 and HORM functioning (factory default). Depending on the configuration, this time may change. When high-speed startup is enabled, TXE, TPM, Network Stack, and SMART Self Test are not supported.
    • *3
      For details, please contact CONTEC’s technical support center.
• VESA standard support

  • It meets the (100 × 100) VESA standard, allowing it to be installed on various types of arms and stands.
