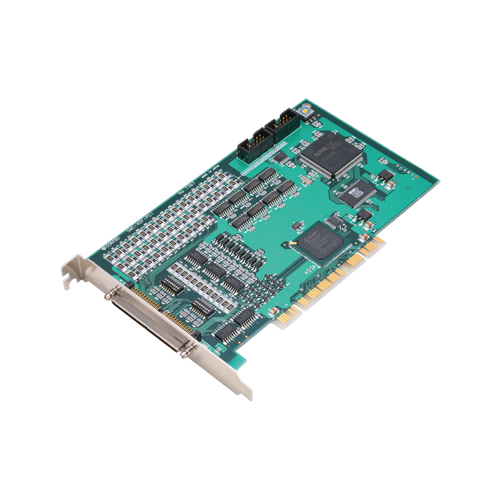

SMC-4DF-PCI 4 axes high-speed line driver output motion control board for PCI(high-performance version)

※即使在期间内，也会有不能接受修复．

Capable of multi-axis independent control and pulse
Capable of various control operations such as positioning,linear/circular interpolation, frame continuous operations, synchronization control, and so on
Provided with various input/output formats enabling connection to an encoder input circuit as well as pulse output circuit
Capable of storing positioning information up to 1024 frames for each axis and control without extra CPU load
With the multi-boards and axis synchronization control function, capable of aligning the timing for operation start and end
Windows compatible driver libraries are attached

订购信息・选件

产品名称	说明
High-Speed Motion Control Board for PCI (4 axes) SMC-4DF2-PCI	Upgrade product. The functions and I/O connectors are compatible. Please refer the manual for details.

型号	产品型号	适应规格
SMC-4DF-PCI	4 axes high-speed line driver output motion control board for PCI(high-performance version)

項目	項目名
API-SMC(WDM)	Motion Control Driver
API-TIMER(W32)	Timer Driver

項目	項目名
PCA100P	100pin 0.8mm-pitch Connector to Open-Ended, Flat Cable
PCB100PS	Both sides with connector shield cable for 100 pin 0.8mm pitch connectors

項目	項目名
EPD-100A	Screw Terminal (M3 x 100)

項目	項目名
CCB-SMC2	Conversion terminal for SMC series

項目	項目名
ESP-F6	Extended warranty service package (6 years service course) (Japan only)
