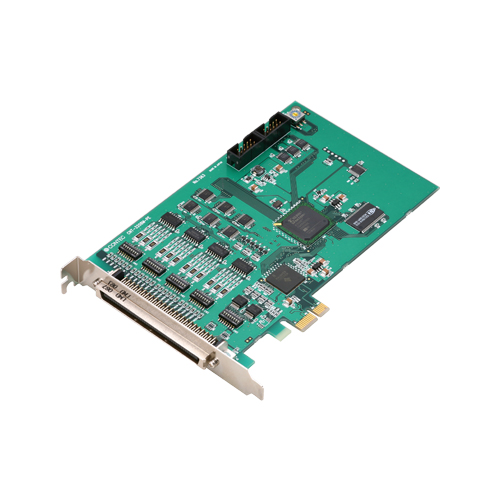

CNT-3208M-PE 计数 PCI Express 总线板卡 8ch (32bit 上/下计数 10MHz) / 增量编码器接口

标准保修3年
延长保修可能

8ch 32-bit up/down counter, high speed pulse input of 10MHz, and disconnection detection are available.
Bus master transfer function is provided.
Digital filter function to prevent wrong recognition of input signals due to noises is provided.
Windows compatible driver libraries are attached.
The synchronization control connectors are provided
Functions and connectors are compatible with PCI compatible card CNT32-8M(PCI).

*
有关延长保修的详细信息，请与我们联系。

支持的操作系统

机能・规格

扩展模块

系列	-
总线规格	PCI Express
类型	Short Size
所用连接器	1.27mm-pitch 96-pin (Male); 2x Pin header 10-pin (Male)

计数器

通道数	8-ch
计数方式	32-bit Up/Down count
响应速度	10MHz [TTL] / 10MHz [differential]

支持的操作系统

支持的操作系统	Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux

Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux

*
各个软件能够支持的操作系统是不同的。关于各个软件所支持的操作系统以及发行版本的信息，请参阅该软件的Readme文件和在线帮助程序。
