DIO-1616T-LPE 数字量输入输出 Low Profile PCI Express总线 板卡 16点/16点 (非绝缘5VDC-TTL)

  • RoHS Compliant
  • 标准保修3年
  • 延长保修可能
  • Unisolated open collector output x 16 channels. Unisolated TTL-level (positive logic) input/output enabling fast response (within 200nsec)
  • You can use all of the input signals as interrupt events and also disable or enable the interrupt in bit units and select the interrupt edge.
  • The rated output signal is up to 30VDC, 40mA per one signal.

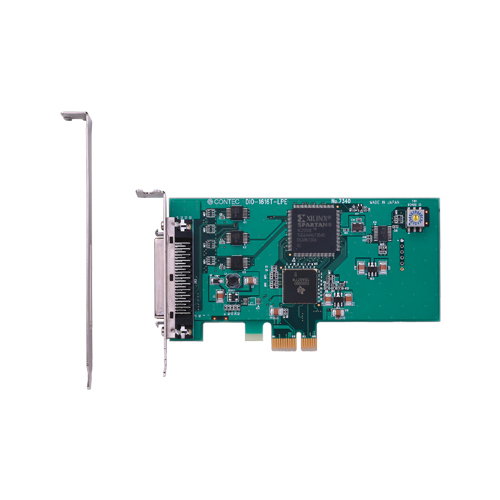

  • Support for both of low-profile and standard size slots (interchangeable with a bundled bracket)

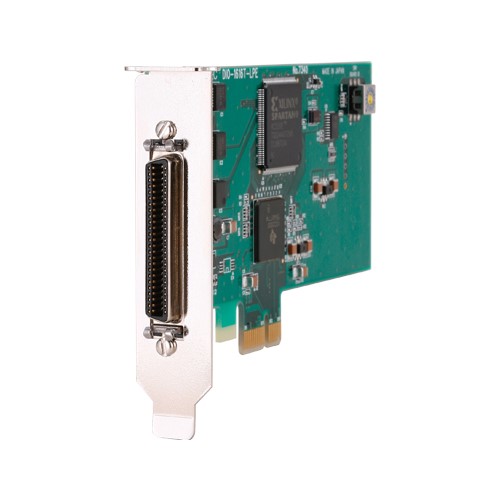

  • Equipped with the same function as the PCI card PIO-16/16T(LPCI)H. The connector shape and the signal assignment for the connector is compatible with PIO-16/16T(LPCI)H.
  • *
    有关延长保修的详细信息,请与我们联系。

订购信息・选件

产品模式与订货型号

型号 产品型号/适应规格
DIO-1616T-LPE 数字量输入输出 Low Profile PCI Express总线 板卡 16点/16点 (非绝缘5VDC-TTL)
  • CE 欧洲合格认证
  • VCCI

可选件

Expansion Accessory Module

項目 項目名
CM-32L Signal monitor Accessory for Digital I/O

Cable

項目 項目名
PCA50PS-P 50pin miniature ribbon connector to Open-Ended, Shield Cable (Mold type)
PCB50PS-P Both sides with connector shield cable for 50pin miniature ribbon connectors
PCE50/37PS-0.5P 50 pin miniature ribbon --> 37 pin D-SUB conversion shield cables(Mold type, 0.5m)

Terminal

項目 項目名
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
EPD-37 Screw Terminal (M3.5 x 37)
EPD-37A Screw Terminal (M3 x 37)
EPD-50A Screw Terminal (M3 x 50)

Software Development Kit

項目 項目名
ACX-PAC(W32) ActiveX components sets for measurement system development
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver
API-TIMER(W32) Timer Driver
API-TIMER(WDM) Windows Driver for Timer Driver
IO-LIB(WDM) Windows General-purpose I/O Driver
