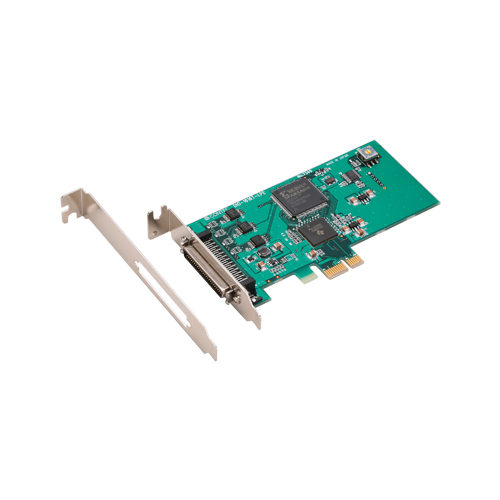

DIO-1616T-LPE 数字量输入输出 Low Profile PCI Express总线板卡 16点/16点 (非绝缘5VDC-TTL)

标准保修3年
延长保修可能

Unisolated open collector output x 16 channels. Unisolated TTL-level (positive logic) input/output enabling fast response (within 200nsec)
You can use all of the input signals as interrupt events and also disable or enable the interrupt in bit units and select the interrupt edge.
The rated output signal is up to 30VDC, 40mA per one signal.
Support for both of low-profile and standard size slots (interchangeable with a bundled bracket)
Equipped with the same function as the PCI card PIO-16/16T(LPCI)H. The connector shape and the signal assignment for the connector is compatible with PIO-16/16T(LPCI)H.

*
有关延长保修的详细信息，请与我们联系。

支持的操作系统

机能・规格

扩展模块

系列
总线规格	PCI Express
类型	Low Profile
所用连接器	Miniature ribbon 50-pin

数字信号输入和输出

输入点数	16-ch
输出点数	16-ch
双向输入输出点数	-
响应时间（输入）	200nsec (max.)
响应时间（输出）	200nsec (max.)
工作电压（输入）	5VDC-TTL
工作电压（输出）	5VDC-TTL
输入电路	Non-isolated TTL level input (Negative logic)
输出电路	Non-isolated TTL open-collector output (Negative logic)
内置外部电路用电源	-

支持的操作系统

支持的操作系统	Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux

Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux

*
各个软件能够支持的操作系统是不同的。关于各个软件所支持的操作系统以及发行版本的信息，请参阅该软件的Readme文件和在线帮助程序。
