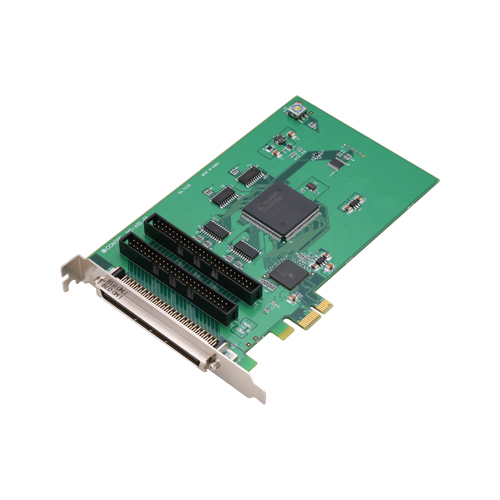

DIO-48D-PE 数字量输入输出 PCI Express总线 板卡 双方向48点 (非绝缘5VDC-TTL)

  • RoHS Compliant
  • 标准保修3年
  • 延长保修可能
  • This card can be used to TTL-level input/output 48 points bi-directional digital corresponding to the equivalence to the i8255 mode 0.
  • You can use up to 48channels of the input signals as interrupt events.
  • This product has a digital filter function to prevent wrong recognition of input signals from carrying noise or a chattering.
  • Windows/Linux compatible driver libraries are attached.
  • Windows/Linux compatible driver libraries Functions are compatible with PCI compatible card DIO-48D2-PCI.re attached.
  • *



总线规格 PCI Express
类型 Short Size
所用连接器 1.27mm-pitch 96-pin (Male); 2x Pin Header 50-pin (Male)


输入点数 -
输出点数 -
双向输入输出点数 48-ch
响应时间(输入) 200nsec (max.)
响应时间(输出) 200nsec (max.)
工作电压(输入) 5VDC-TTL
工作电压(输出) 5VDC-TTL
输入电路 Non-isolated TTL level input (Positive logic)
输出电路 Non-isolated TTL level output (Positive logic)
内置外部电路用电源 -


支持的操作系统 Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
  • *
