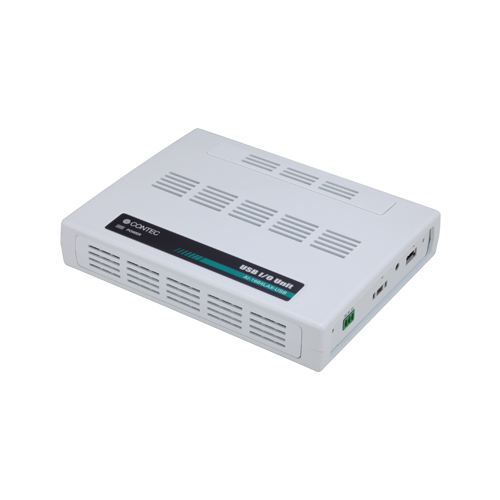

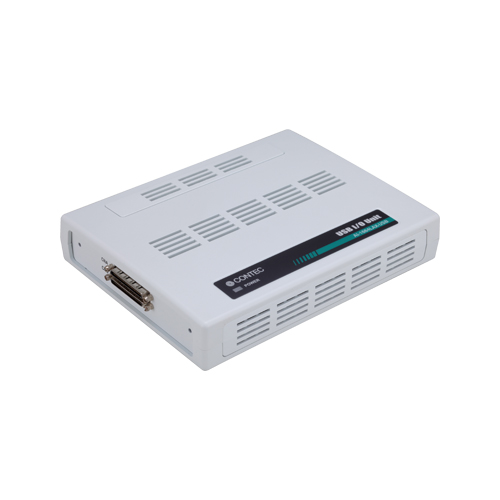

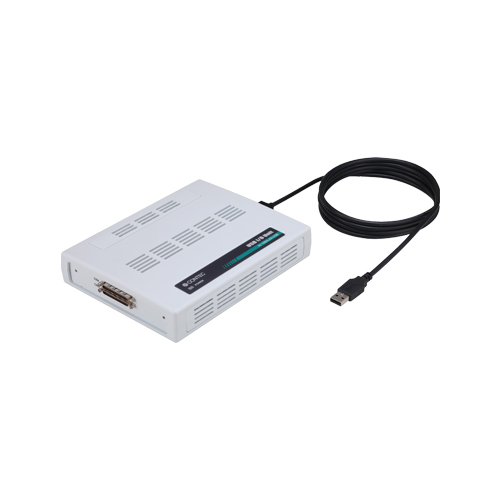

AI-1664LAX-USB 模拟量输入 USB I/O单元 /64ch 模拟量输入(16bit 100ks/s) / 1ch 计数器 - 多功能DAQ L系列

  • RoHS Compliant
  • 标准保修1年
  • 延长保修可能
  • High-precision analog input 64 channels, each 4 channels for digital I/O and counter 1 channel
  • The start/end of sampling can be controlled by software, comparison of conversion data, an external trigger, etc.
  • Equipped with buffer memory (1K data) that can be used in the FIFO or RING format
  • Digital filter function included to prevent misdetection due to chattering on external signals
  • Compatible with PCI / PCI Express bus board in it’s design. Common connector shape and pin assignment with PCI / Express bus board
  • Compatible to USB1.1/USB2.0
  • *
    有关延长保修的详细信息,请与我们联系。

订购信息・选件

产品模式与订货型号

型号 产品型号/适应规格
AI-1664LAX-USB 模拟量输入 USB I/O单元 /64ch 模拟量输入(16bit 100ks/s) / 1ch 计数器 - 多功能DAQ L系列
  • CE 欧洲合格认证
  • FCC制度认证
  • VCCI

可选件

Cable

項目 項目名
ADC-68M/96F Shield Cable for Analog I/O Card for CardBus
PCA68PS-P 68pin 0.8mm Pitch Connector to Open-Ended, Shield Cable
PCB68PS-P Both sides with connector shield cable for 68 pin 0.8mm pitch connectors

Terminal

項目 項目名
ATP-32F BNC Connectors for Analog I/O Card
ATP-8 BNC Connector Accessory for Analog I/O Card
DTP-64A Screw Terminal (M3 x 96)
EPD-68A Screw Terminal (M3 x 68)
EPD-96 Screw Terminal (M3.5 x 96)
EPD-96A Screw Terminal (M3 x 96)

Power Supply / AC Adapter

項目 項目名
POW-AD13GY F&eIT series AC-DC Power Supply Unit Input 85-132VAC, Output 5VDC 3A
POW-AD22GY F&eIT series AC-DC Power Supply Unit Input 85-264VAC, Output 5VDC 2A
POW-DD10GY F&eIT series DC-DC Power Supply Unit Input : DC10-30V, Output : DC5V 3A

Other Accessories

項目 項目名
BRK-USB-X USB I/O Unit Bracket for X series

Software Development Kit

項目 項目名
API-AIO(LNX) Analog I/O Driver for Linux
API-AIO(WDM) Windows version High-efficiency Analog I/O Driver

Library Software

項目 項目名
DAQ-LV-WIN LabVIEW Data Acquisition Library
