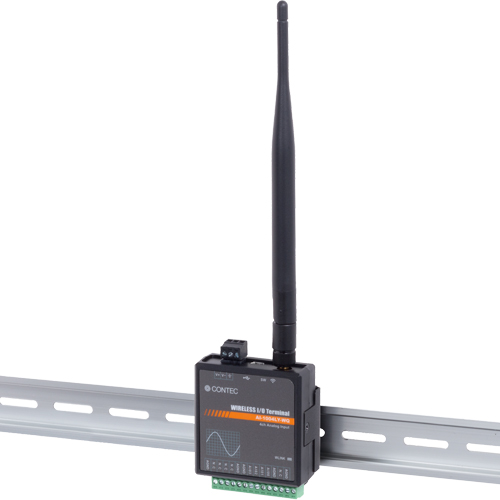

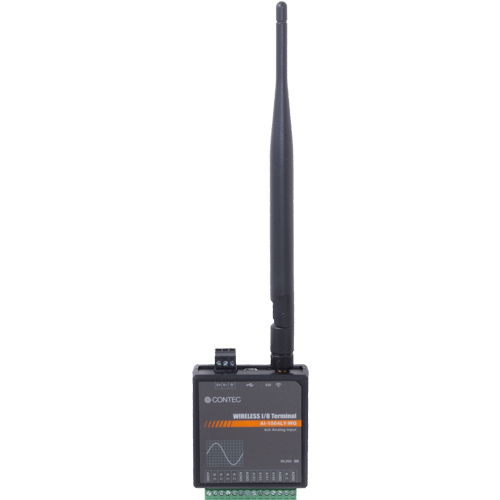

AI-1004LY-WQ-EU 4ch Analog Input Terminal for Sub-1GHz band Wireless (EU only)

  • 标准保修1年
  • Supports Sub-1GHz band wireless with excellent transmission distance
  • Highly reliable mesh communication
  • Adaptable to a wide range of temperature
  • Windows version analog input driver API-AIO(WDM)
  • Easy mounting on DIN rail
  • No adjustment for analog input

机能・规格

扩展模块

总线规格 Sub-1GHz band wireless
类型 Y Type
所用连接器 1x Screw terminal block 14-pin

模拟信号输入输出

Input Channels Single-ended 4-ch
Input Range ±10V
ADC Resolution 10-bit
Sampling Rate -
Output Channels -
Output Range -
DAC Resolution -
Update rate -

数字信号输入和输出

输入点数 -
输出点数 -
双向输入输出点数 -
响应时间(输入) -
响应时间(输出) -
工作电压(输入) -
工作电压(输出) -
输入电路 -
输出电路 -
内置外部电路用电源 -
