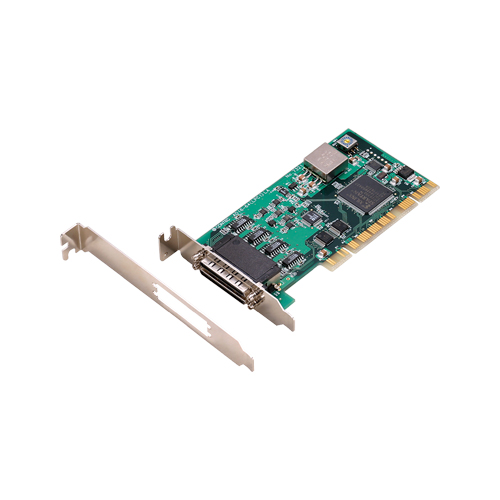

AD16-64(LPCI)LA 模拟量输入 Low Profile PCI 总线板卡 / 64ch 模拟量输入(16bit 100ks/s) / 1ch 计数器 - 多功能DAQ L系列

  • RoHS Compliant
  • 标准保修3年
  • 延长保修可能
  • Multi channels analog input
  • Substantiality of a basic function
  • Substantiality of a control function
  • The filter function deployment to do connection of an outside signal easily
  • Adjustment is possible by software
  • Support Low Profile PCI Slot/PCI Slot
  • *
    有关延长保修的详细信息,请与我们联系。

概要・特点

This product is a PCI bus compatible interface board with 64 high-precision, 16-bit analog input channels, digital input and output channels (4 channels each), and a 32-bit counter(1 channel). Windows Driver Library API-PAC(W32) /Linux driver API-AIO(LNX) is Bundled. It can also collect data easily without a program when the data logger software [C-LOGGER] stored on the attached CD-ROM is used. With plug-ins for the dedicated libraries, the board also supports MATLAB and LabVIEW.

  • Multi channels analog input
    • Analog input of 64 single-end input channels or 32 differential input channels is possible. It can sets the single-end input, choice of the differential input by software.
  • Substantiality of a basic function
    • It realizes high-precise analog input by a compact system, It carries control signal (3 points of TTL) of analog input, digital input (4 points of TTL), digital output (4 points of TTL), counter (32bit, TTL 1ch) other than analog input.
  • Substantiality of a control function
    • As for the Analog input, the input that synchronized to input of every time and an outside signal together is possible.
  • The filter function deployment to do connection of an outside signal easily
    • In an outside control signal of Analog input, It possess the digital filter which can prevent chattering.
  • Adjustment is possible by software
    • It can perform adjustment of analog input by software entirely. There is not troublesome jumper setting. In addition, It can memorize the adjustment information that is different from adjustment information at the time of factory shipment and can have the adjustment information that accepted use environment.
  • Support Low Profile PCI Slot/PCI Slot
    • It supports to a Low Profile size slot and a standard size slot(can change it with an attached bracket).
