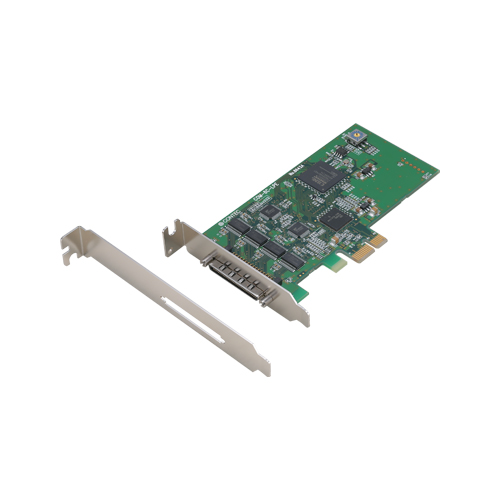

COM-8C-LPE 串行通信 Low Profile PCI Express 总线板卡 RS-232C 8ch

标准保修3年
延长保修可能

Max. 921,600bps RS-232C Serial Communication
Possibly used as Windows, Linux-standard COM ports, using the supported driver library
Support for both of Low Profile and standard size slots

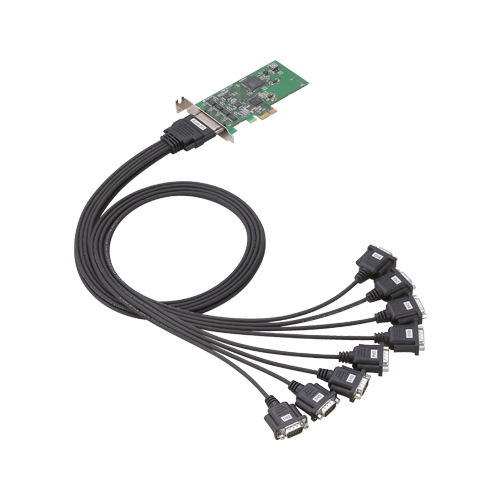

Conversion cable is available as optional
Equipped with separate 128-byte FIFO buffers for transmit and receive.
The control line for RS-232C can be controlled and monitored by software.

*
有关延长保修的详细信息，请与我们联系。

支持的操作系统

机能・规格

扩展模块

系列	-
总线规格	PCI Express
类型	Low Profile
所用连接器	0.8mm-pitch 68-pin (Female)

串行通信

通道数	8x RS-232C [ASYNC]
传输速度	2 ~ 921,600bps
隔离性	-
传送方式	RS-232C [Asynchronous]

支持的操作系统

支持的操作系统	Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux

Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux

*
各个软件能够支持的操作系统是不同的。关于各个软件所支持的操作系统以及发行版本的信息，请参阅该软件的Readme文件和在线帮助程序。
