GMB-AQ47000 産業用マザーボード / ATX / Intel 10th Gen. Processors (Comet Lake-S + Q470E) / (LGA1200) / 1x PCIe3.0 (x16), 2x PCIe3.0 (x4), 4x PCI

• 概要・特長
• 機能・仕様
• 価格・オプション
• サポート・ダウンロード

概要・特長

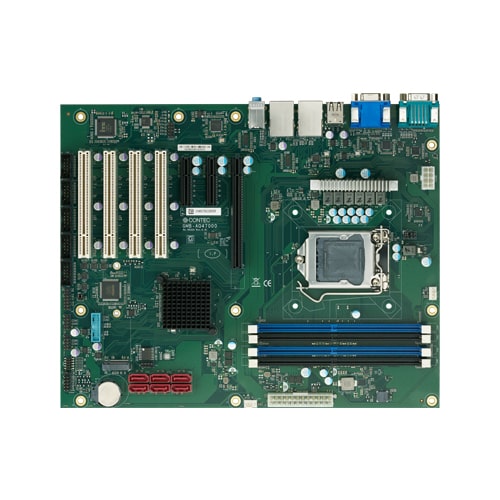

This product is a ATX form factor industrial mainboard which based on Intel® Core™ Processors that offer 14nm Hi-K process technology with energy efficient architecture. GMB-AQ47000 adopts four DDR4 UDIMM sockets and supports up to 128GB memory.
Desktop SKU solutions are suitable for factory automation applications. Moreover, with the high performance and high-end specifications, GMB-AQ47000 is our Comet Lake-S platform on industrial motherboard product line

適用例

• Intel® 10th Comet Lake-S Platform

  • This product is equipped with the 10th generation Intel® Core™ processors. Adopting embedded-type CPU contributes to a stable supply. Following CPUs are recommended for customer reference; Intel® Core™ i9 / i7 / i5 /i3 up to 125W TDP.
• Multi-display Supported

  • Full HD video can be smoothly played. It also supports full HD output of the three-screen with VGA, DisplayPort, and HDMI.
• Dual Gigabit Ethernet

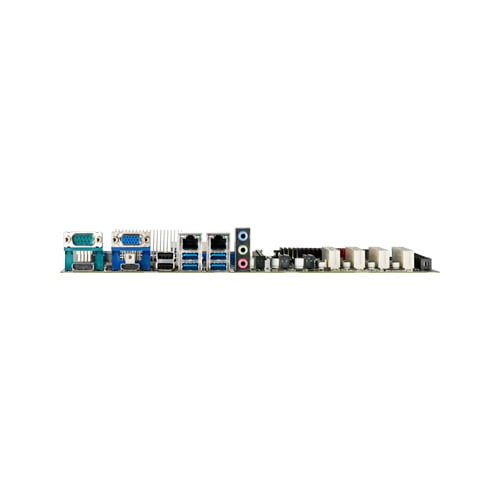

  • The product has 2 RJ45 connectors on rear I/O for customer usage, which are 1 x Intel® I219LM + 2 x Intel® I211T PCIe chip.
• Extend Peripherals Freely Rich Interface

  • This product is equipped with a variety of interfaces such as serial port, USB 3.2/ 2.0, 8-bit GPIO, audio jack, Line-out/ Mic-in, M.2 Key M, LAN, HDMI,DP,VGA ect. For customers with various needs.
